Description

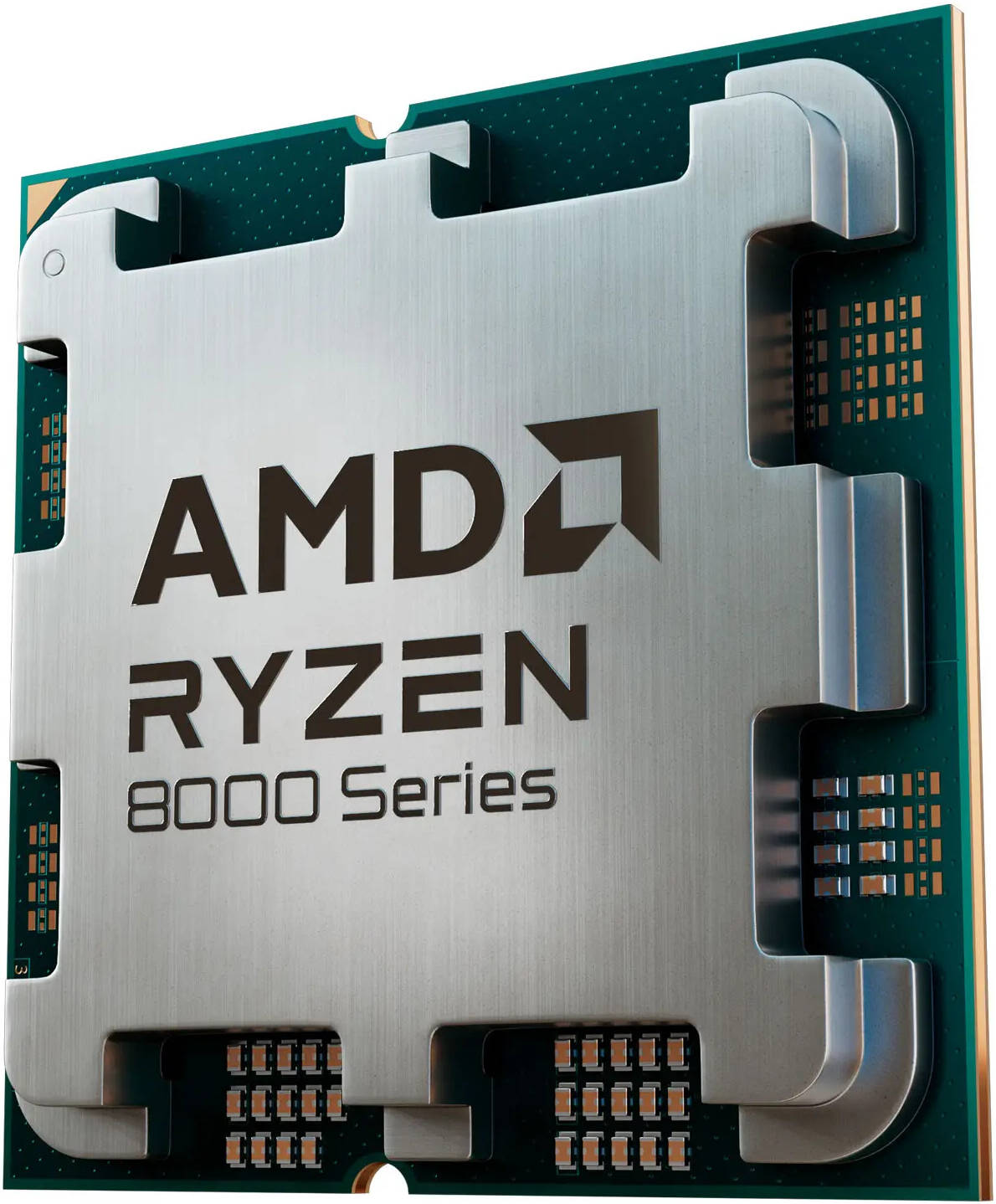

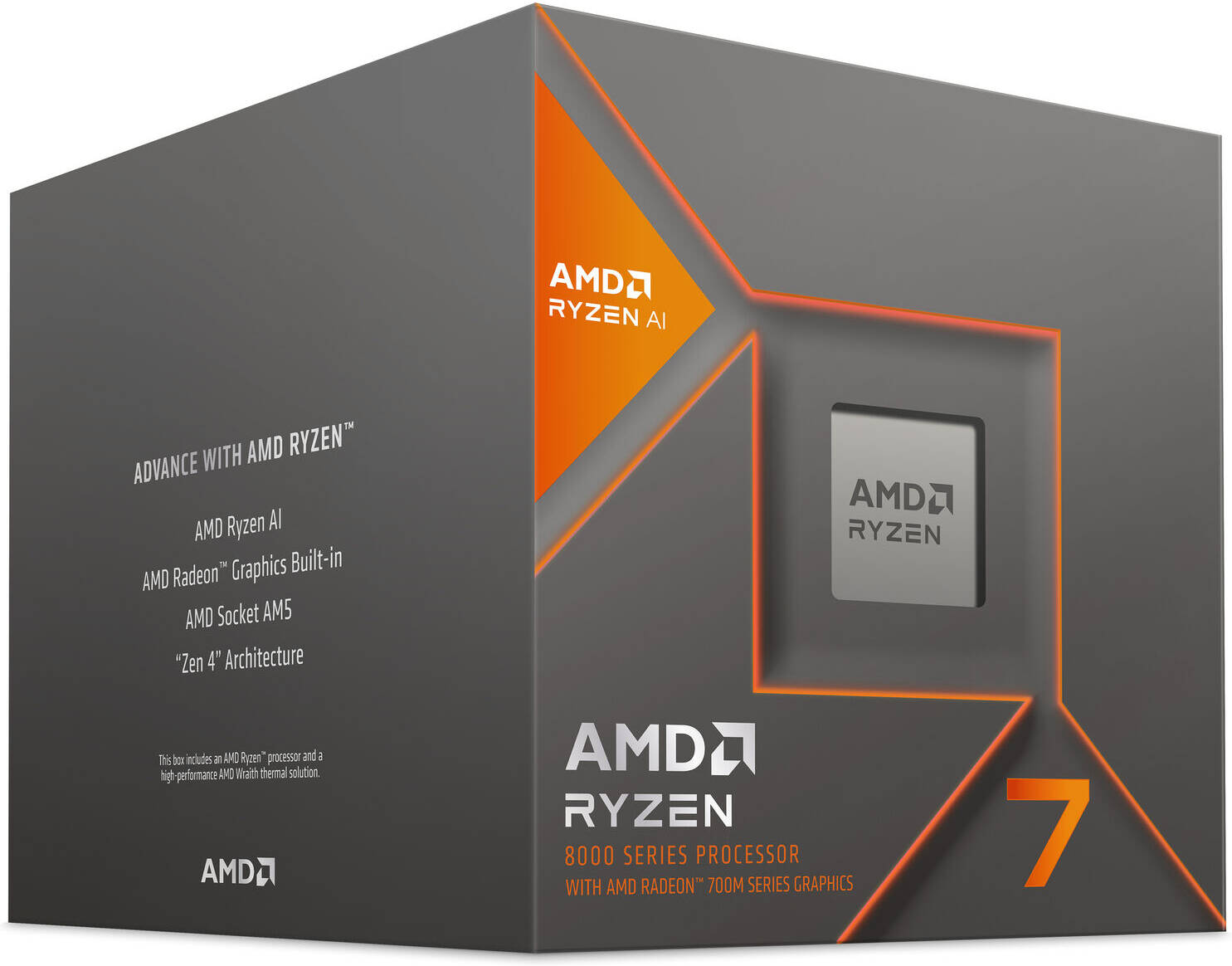

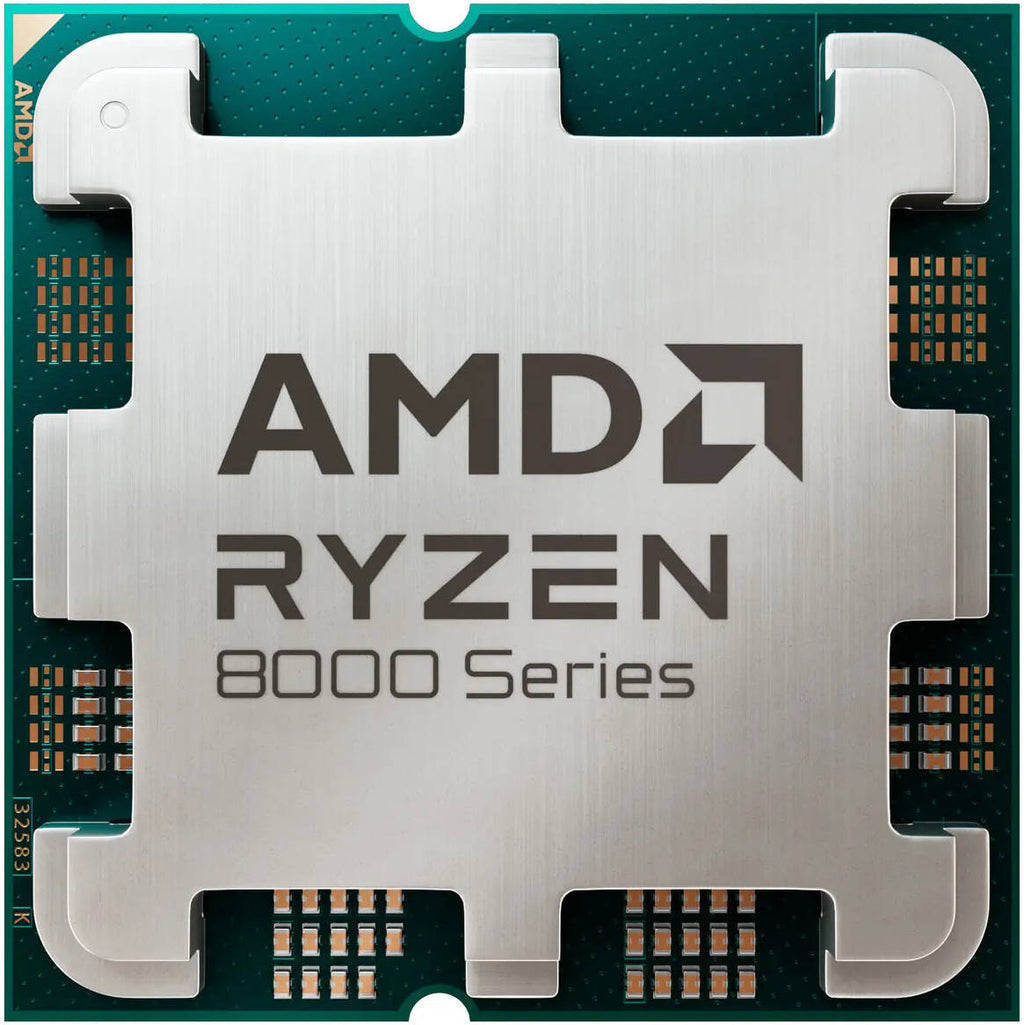

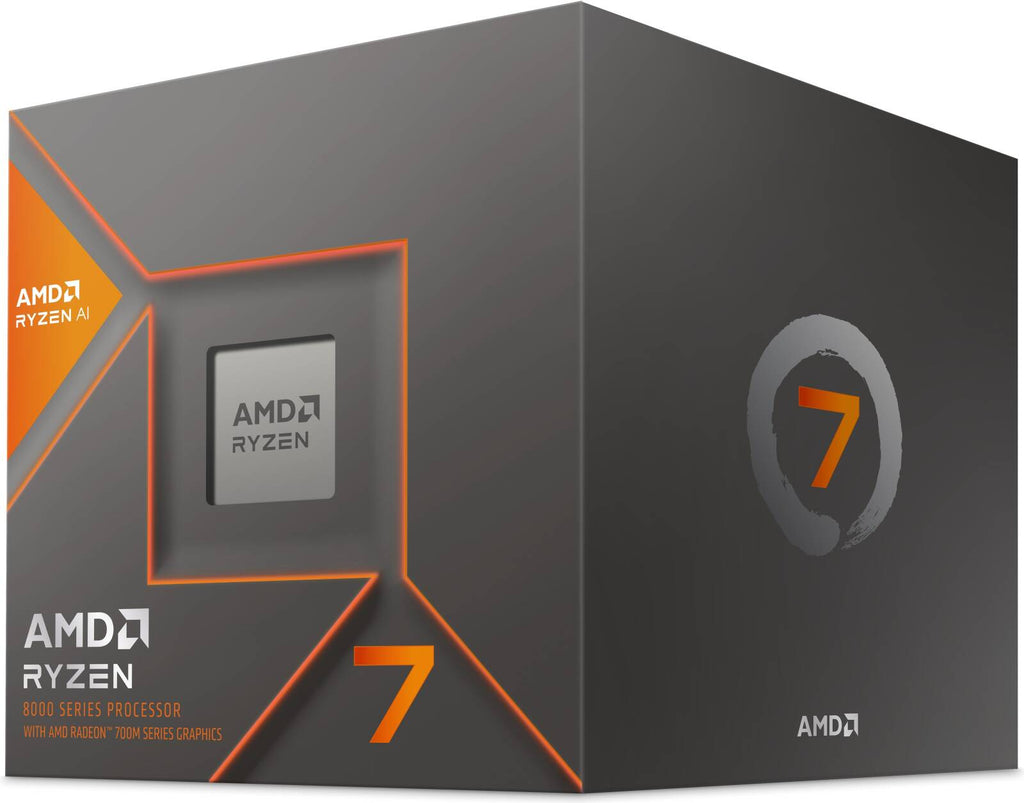

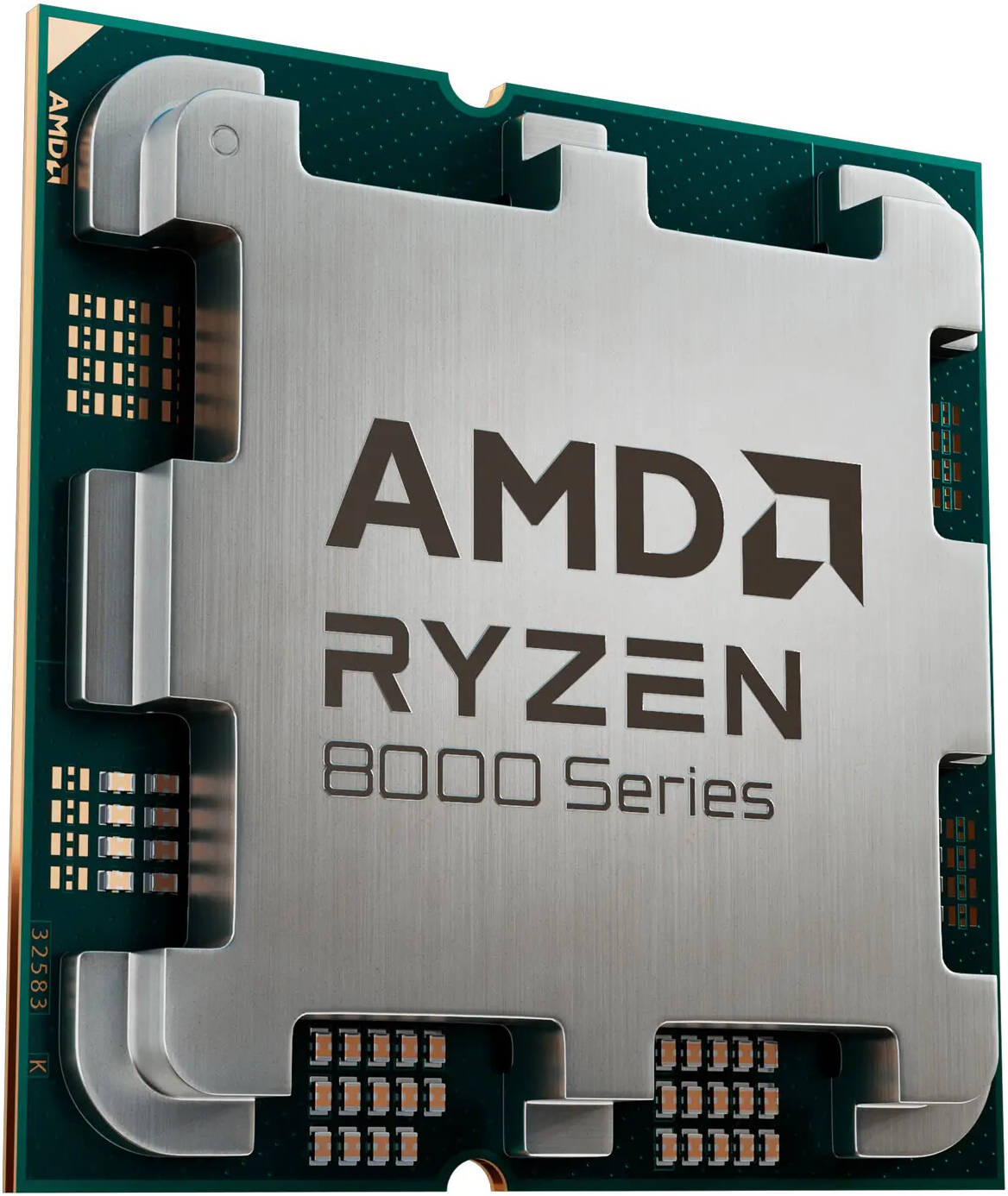

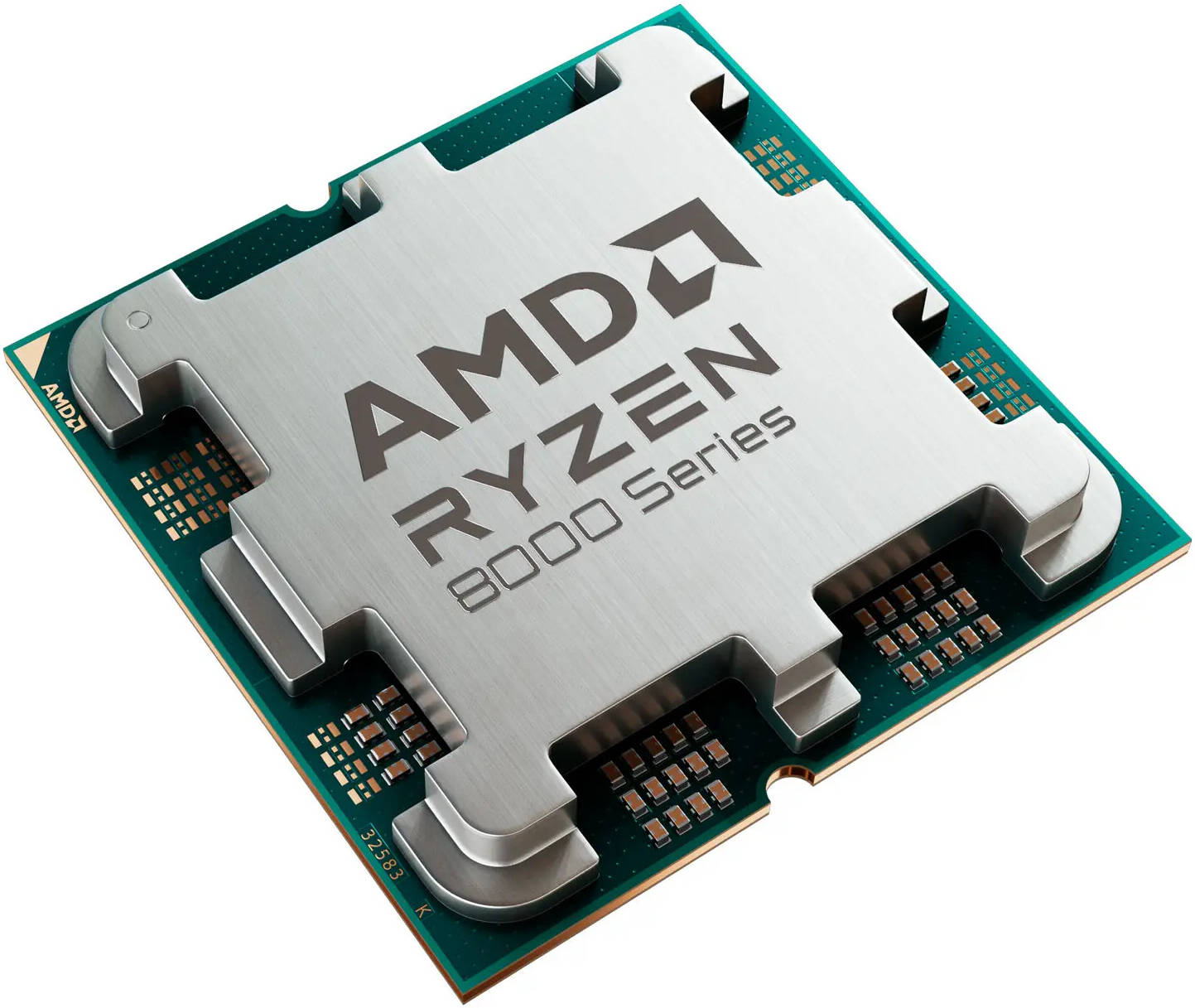

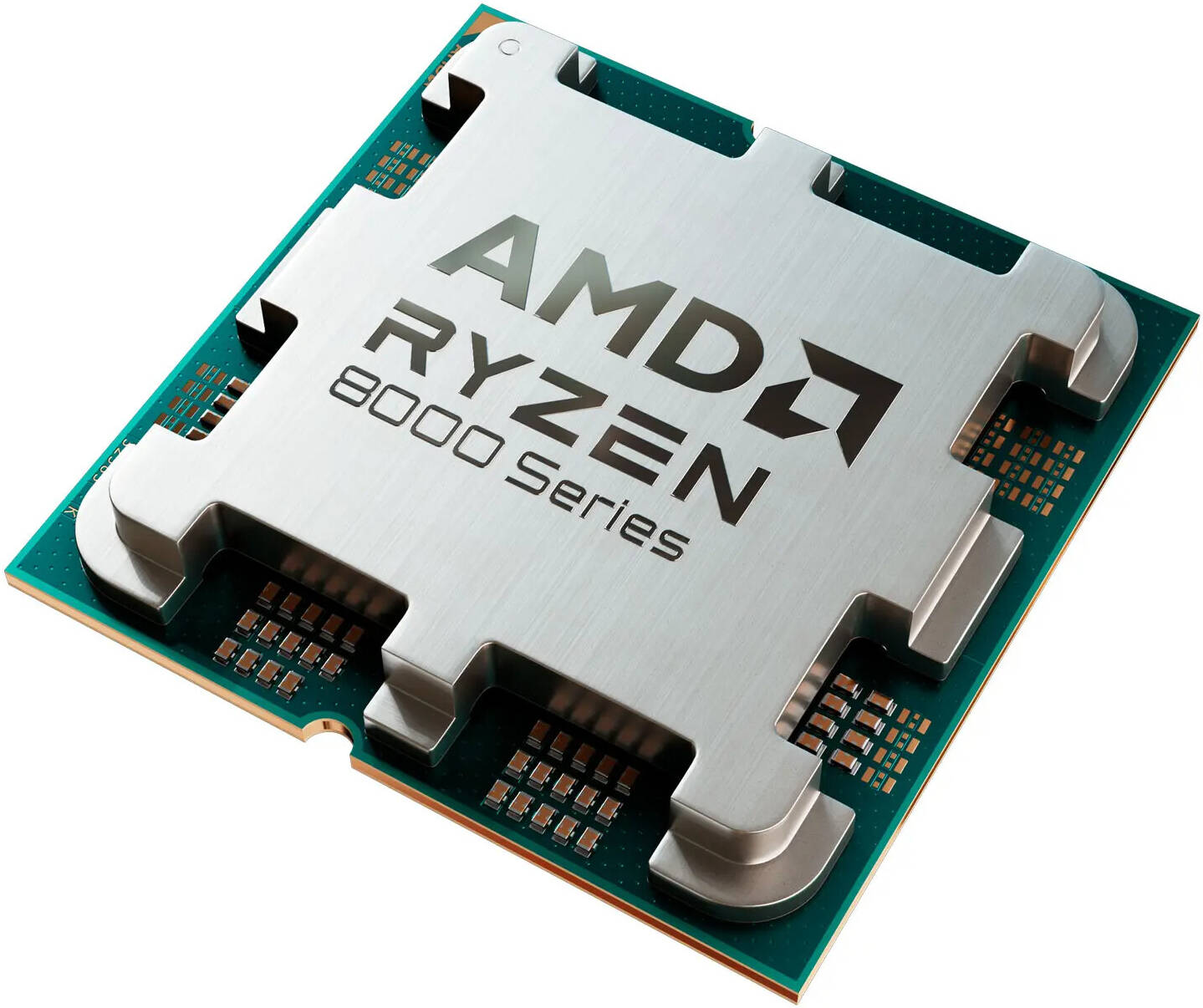

Description for AMD Ryzen 7 8700G 4.2 GHz AM5 Desktop Processor, 8 Cores & 16 Threads, 5.1 GHz Max Boost Clock, 8MB L2 & 16MB L3 Cache, AMD Radeon 780M, AMD Ryzen AI, DDR5-5200 / 256 GB Max Memory | 100-100001236BOX
AMD Ryzen 7 8000 G-Series Desktop Processors with Radeon Graphics
Ryzen 7 8700G
Wit eight cores, 16 threads, and a dedicated AI engine, the AMD Ryzen 7 8700G 4.2 GHz Eight-Core AM5 Processor brings your gaming and content-creation experiences to new levels. Designed for socket AM5 motherboards using the powerful Zen 4 architecture with the 4nm process, this Ryzen processor delivers significantly improved performance compared to its predecessor while maintaining high energy efficiency.
Key Features
- 8 Cores & 16 Threads
- 4.2 GHz Base Clock
- 5.1 GHz Max Boost Clock
- Socket AM5
- 8MB L2 & 16MB L3 Cache
- Integrated AMD Radeon 780M Graphics
- DDR5-5200 Memory
- Unlocked Processor | AMD Ryzen AI
- Zen 4 Architecture
Specifications
| Details | |
|---|---|
| Platform | Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line | AMD Ryzen™ 7 8000 G-Series Desktop Processors with Radeon™ Graphics |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | "Phoenix" |
| Architecture | "Zen 4" |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 5.1GHz |
| Base Clock | 4.2GHz |
| L2 Cache | 8MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| AMD Configurable TDP (cTDP) | 45-65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| CPU Compute Die (CCD) Size | 178mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Socket | AM5 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max. Operating Temperature (Tjmax) | 95°C |
| Launch Date | 1/31/2024 |
| OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit (OS support may vary by manufacturer) |
| Connectivity | - |
| Native USB 4 (40Gbps) Ports | 2 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 2 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCIe Version | PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) | 20 / 16 |
| NVMe Support | Boot, RAID0, RAID1 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 256GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | - |
| Graphics Capabilities | - |
| Integrated Graphics | Yes |
| Graphics Model | AMD Radeon™ 780M |
| Graphics Core Count | 12 |
| Graphics Frequency | 2900 MHz |
| DirectX Version | 12 |
| DisplayPort Version | 2.1 |
| DisplayPort Extensions | HDR Metadata, Adaptive-Sync, UHBR10 |
| DisplayPort Max Refresh Rates (SDR) | 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz |
| DisplayPort Max Refresh Rates (HDR) | 7680x4320 @ 60Hz, 3840x2160 @ 240Hz, 3440x1440 @ 360Hz, 2560x1440 @ 480Hz, 1920x1080 @ 600Hz |
| HDMI Version | 2.1 |
| HDCP Version Supported | 2.3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Multi-Monitor Support | Yes |
| Max Displays | 4 |
| AMD FreeSync™ | Yes |
| Wireless Display | Miracast |
