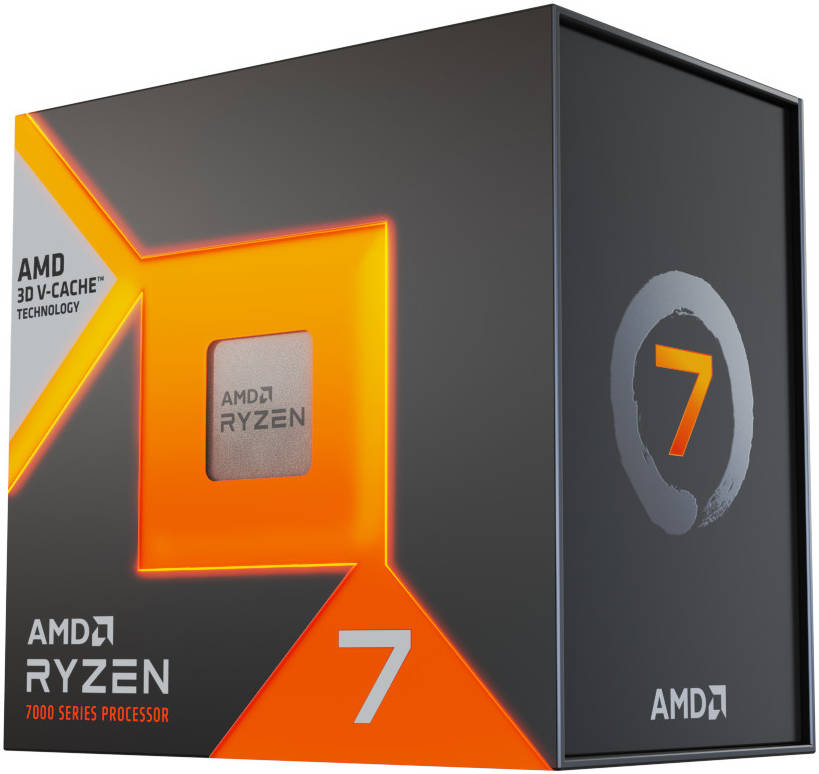

AMD Ryzen 7 7800X3D AM5 with AMD Radeon Graphics, 8 Cores, 16 Threads
Roll over image to zoom in Click on image to zoom
AMD Ryzen 7 7800X3D AM5 with AMD Radeon Graphics, 8 Cores, 16 Threads

AMD Ryzen 7 7800X3D AM5 with AMD Radeon Graphics, 8 Cores, 16 Threads

AMD
Price:
AED 1,877.00

Description

AMD Ryzen 7 7800X3D AM5 Desktop Processor with AMD Radeon Graphics, 8 Cores & 16 Threads, 5 GHz Max Boost Clock, 8MB L2 & 96MB L3 Cache, DDR5 Memory & 128GB Max Capacity | 100-100000910WOF



AMD Ryzen™ 7 7800X3D





General Specifications
Platform
Desktop
Market Segment
Enthusiast Desktop
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 7 Processors
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
"Raphael AM5"
Architecture
"Zen 4"
# of CPU Cores
8
Multithreading (SMT)
Yes
# of Threads
16
Max. Boost Clock
Up to 5.0GHz
Base Clock
4.2GHz
L1 Cache
512KB
L2 Cache
8MB
L3 Cache
96MB
Default TDP
120W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620
X670E
X670
B650E
B650
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)
Not included
Recommended Cooler
Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
89°C
Launch Date
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
1
Native SATA Ports
0
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28 / 24
Additional Usable PCIe Lanes from Motherboard
AMD X670E

12x Gen4

AMD X670

12x Gen4

AMD B650E

8x Gen4

AMD B650

8x Gen4

NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
Product IDs
Product ID Boxed
100-100000910WOF
Product ID Tray
100-000000910
Key Features
Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies
