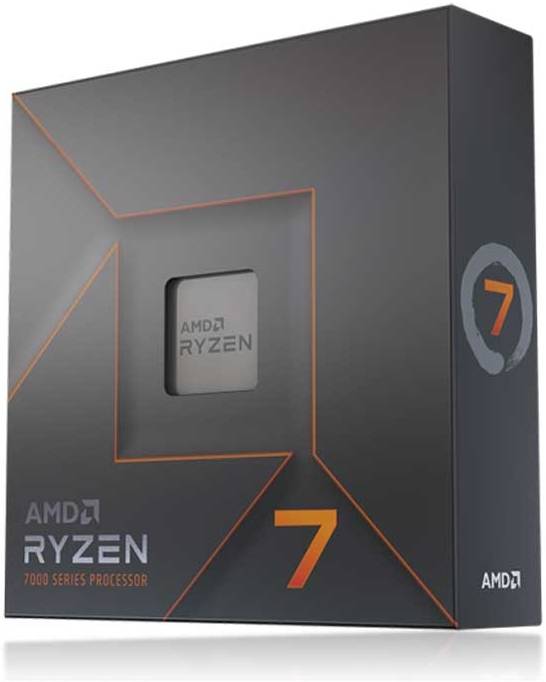

AMD Ryzen 7 7700X , 8 Cores, 16 Threads

Add Your Review

Available: In Stock

Wishlist Compare

Category: AMD, Processors, Products

AED 1,575.00

AMD Ryzen 7 7700X Desktop Processors, AM5 CPU Socket, 8 Cores 4.5GHz Up to 5.4GHz, 16 Threads, 105W TDP, 40MB Cache Memory, 2 Channels, 5200 MT/s Speed, 28/24 PCIe | 100-100000591WOF

General Specifications

Platform

Desktop

Market Segment

Enthusiast Desktop

Product Family

AMD Ryzen™ Processors

Product Line

AMD Ryzen™ 7 Desktop Processors

AMD PRO Technologies

Consumer Use

Yes

Regional Availability

Global

Former Codename

"Raphael AM5"

Architecture

"Zen 4"

# of CPU Cores

Multithreading (SMT)

Yes

# of Threads

Max. Boost Clock

Up to 5.4GHz

Base Clock

4.5GHz

L1 Cache

512KB

L2 Cache

8MB

L3 Cache

32MB

Default TDP

105W

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

Unlocked for Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

X670E

X670

B650E

B650

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)

Not included

Max. Operating Temperature (Tjmax)

95°C

Launch Date

9/27/2022

*OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support

Yes

Native USB 3.2 Gen 2 (10Gbps) Ports

Native USB 3.2 Gen 1 (5Gbps) Ports

Native USB 2.0 (480Mbps) Ports

Native SATA Ports

Native PCIe® Lanes (Total/Usable)

28/24

Additional Usable PCIe Lanes from Motherboard

AMD X670E

12x Gen4

AMD X670

12x Gen4

AMD B650E

8x Gen4

AMD B650

8x Gen4

NVMe Support

Boot, RAID0, RAID1, RAID10

System Memory Type

DDR5

Memory Channels

Max. Memory

128GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics

Yes

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

Graphics Frequency

2200 MHz

GPU Base

400 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes

Product IDs

Product ID Boxed

100-100000591WOF

Product ID Tray

100-000000591

Key Features

Supported Technologies

AMD EXPO™ Technology

AMD Ryzen™ Technologies

AMD Ryzen 7 7700X Desktop Processors, AM5 CPU Socket, 8 Cores 4.5GHz Up to 5.4GHz, 16 Threads, 105W TDP, 40MB Cache Memory, 2 Channels, 5200 MT/s Speed, 28/24 PCIe | 100-100000591WOF

General Specifications Platform Desktop Market Segment Enthusiast Desktop Product Family AMD Ryzen™ Processors Product Line AMD Ryzen™ 7 Desktop Processors AMD PRO Technologies No Consumer Use Yes Regional Availability Global Former Codename "Raphael AM5" Architecture "Zen 4" # of CPU Cores 8 Multithreading (SMT) Yes # of Threads 16 Max. Boost Clock Up to 5.4GHz Base Clock 4.5GHz L1 Cache 512KB L2 Cache 8MB L3 Cache 32MB Default TDP 105W Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets X670E X670 B650E B650 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution (PIB) Not included Max. Operating Temperature (Tjmax) 95°C Launch Date 9/27/2022 *OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.

Connectivity USB Type-C® Support Yes Native USB 3.2 Gen 2 (10Gbps) Ports 4 Native USB 3.2 Gen 1 (5Gbps) Ports 0 Native USB 2.0 (480Mbps) Ports 1 Native SATA Ports 0 Native PCIe® Lanes (Total/Usable) 28/24 Additional Usable PCIe Lanes from Motherboard AMD X670E

12x Gen4

AMD X670

12x Gen4

AMD B650E

8x Gen4

AMD B650

8x Gen4

NVMe Support Boot, RAID0, RAID1, RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 128GB System Memory Subtype UDIMM Max Memory Speed 2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support Yes (Requires mobo support)

Graphics Capabilities Integrated Graphics Yes Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz GPU Base 400 MHz USB Type-C® DisplayPort™ Alternate Mode Yes

Product IDs Product ID Boxed 100-100000591WOF Product ID Tray 100-000000591

Key Features Supported Technologies AMD EXPO™ Technology AMD Ryzen™ Technologies
