Description

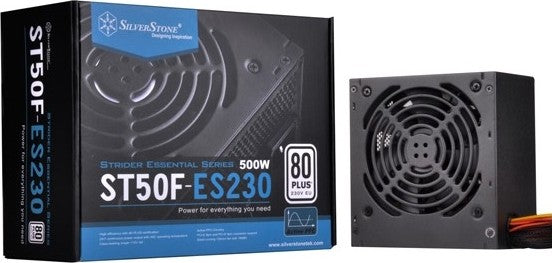

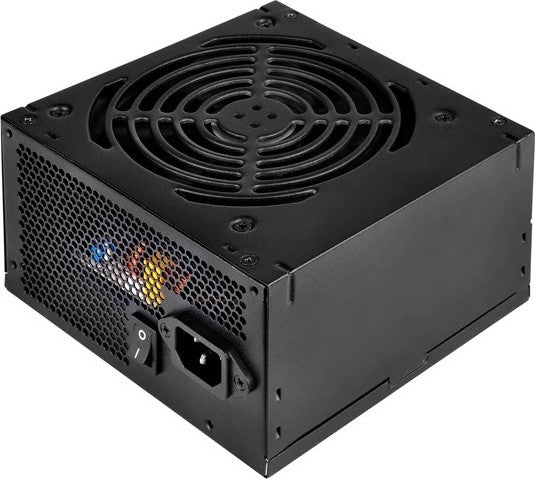

Description for SILVERSTONE Strider Essential 500W ATX12V / EPS12V SLI Ready CrossFire Ready 80 Plus White, PCI-E 8pin and PCI-E 6pin connector,1 20mm fan | SST-ST50F-ES230 (BK)
■ High efficiency with 80 PLUS certification
■ 24/7 continuous power output with 40℃ operating temperature
■ Class-leading single +12V rail
■ Active PFC Circuitry
■ PCI-E 8pin and PCI-E 6pin connector support
■ Silent running 120mm fan with 18dBA
The Strider Essential series is a line of power supplies designed with high affordability and great performance. They have 80 PLUS certification with maximum efficiency of up to 85% under 230V. Equipped with powerful single +12V rail and quiet running fan, they also provide stable performance with minimum noise. For longevity, they are based on proven design and built with quality components to support 24/7 operation at up to 40 degrees Celsius. Even high-end systems with powerful graphics cards can be powered easily by Strider Essential PSUs standard 8pin/6pin PCI-E connectors, making them an outstanding choice for those seeking best value and performance for their money.
1. | Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.![]() ![]() |
2. | Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use. ![]() |
3. | Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.![]() |
4. |
140mm depth sets new standard for high wattage PSUs. |
Specifications
Model No. |
SST-ST50F-ES230
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. DC Output |
500W
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power density |
277W per liter
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combined +3.3V & +5V |
110W (V2.0)
120W (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combined +12V |
456W (V2.0)
400W (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage |
180 ~ 264Vrms (V2.0)
207 ~ 253Vrms (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Frequency Range |
47Hz ~ 63Hz
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PFC |
Active PFC.(PF>0.9 at Full Load)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Efficiency |
82%~85% @ 20% ~ 100% loading
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF |
100,000 hours
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
0°C ~ 40°C
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
Over Power Protection
Over Voltage Protection Short Circuit Protection Under voltage protection (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Connectors |
V2.0
1 x 24 / 20-Pin motherboard connector(500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 2 x 8 / 6-Pin PCIE connector("500mm / 150mm" x 2) 4 x SATA connector("500mm / 150mm" x 2) 2 x 4-Pin Peripheral connector(500mm / 150mm / 150mm / 150mm) 1 x 4-Pin Peripheral connector(500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm) V1.0 1 x 24 Pin motherboard connector(450mm) 1 x 8-Pin EPS12V connector(550mm) 1 x 4-Pin ATX12V connector(550mm / 150mm) 2 x 8 / 6-Pin PCIE connector(400mm / 150mm) 6 x SATA connector(700mm / 150mm / 150mm) 3 x 4-Pin Peripheral connector (400mm / 150mm / 150mm) 1 x 4-Pin Floppy connector(400mm / 150mm / 150mm / 150mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cooling System |
Silent 120mm fan
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Level |
18 dBA minimum
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight |
1.31kg (V2.0)
1.7kg (V1.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
80 PLUS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Other |
GPU Support list
Compatible with ATX12V v2.4 |
