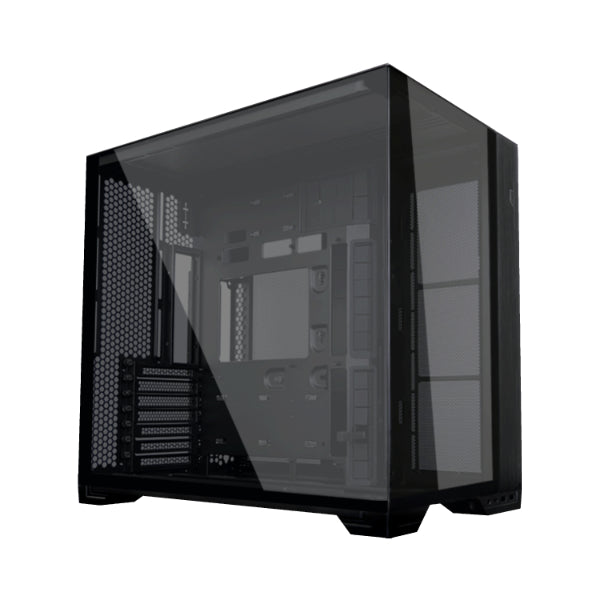

Lian Li 011 VISION COMPACT B Medium Case - EATX/ATX/M-ATX/ITX-Black
Overview
O11 VISION COMPACT
- Two top panel options: mesh or tempered glass
- Vision mode with tempered glass for an uninterrupted view of components
- Mesh mode with fan bracket for additional radiator or fan support
- Supports up to 11 fans and a maximum of 360mm large radiator
- Compatible with back-connect ATX motherboards
- Hidden AIO tube design for a streamlined appearance
- Dual-chamber layout with cable management compartment and cable holders
-
Concealed Cables: Simple and Elegant
Beside the rear pass-through grommet, an ATX EPS cover provides a clean BTF look. Long vertical grommets run the right side of the motherboard. The large top grommet can pass a CPU pump block, and can be removed/re-inserted for maximum clearance. Detaching the cable cover, AIO tubes slide into provided channels for a cleaner look.
*Be careful with pump block pre-applied thermal paste.
Pass-Through Channel for the AIO tube
Pass through grommet for the AIO pump
POWERFUL COOLING COMPATIBILITY
MESH MODE
Supports up to 11x120mm fans, or 2x140mm and 8x120mm fans
VISION MODE
Supports up to 8x120mm fans
EASY ACCESS FOR DUST FILTERS
The bottom of the O11 VISION COMPACT is equipped with a full-length dust filter that pull out from the left side. There are four magnets that attach the filter tight against the frame.
Front I/O
The power button features a white backlight to indicate the power status. The front I/O ports are located at the foot design, offering a variety of connections for convenience.
HIGH STORAGE CAPACITY
The removable cable management bar is secured by magnetic latches. Supports up to 2×2.5″ SSDs and can also accommodate a fan or ARGB hub.
Cable management bar storage
DRIVE CAGE
2 x 2.5″ SSD or 2 x 3.5″ HDD. Each drive cage is independently removable, freeing up space for cable management.
EASY CABLE MANAGEMENT
Like the O11 VISION, the O11 VISION COMPACT also comes with 2 dual-layer cable clips that slide out of their SSD-style mounting points. The clip can hold the bulk of PSU cables, while the Velcro strap on top is ideal for fan cable management. 6 additional Velcro straps, 2 above and 4 below, tidy up cables to the motherboard and storage.
Bulky cables can be securely held in the cable holder.
Thinner cables can be managed using Velcro straps.
EXTENDED ROOM
The PSU mounting bracket, carrying over the design from the O11 VISION, protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.
