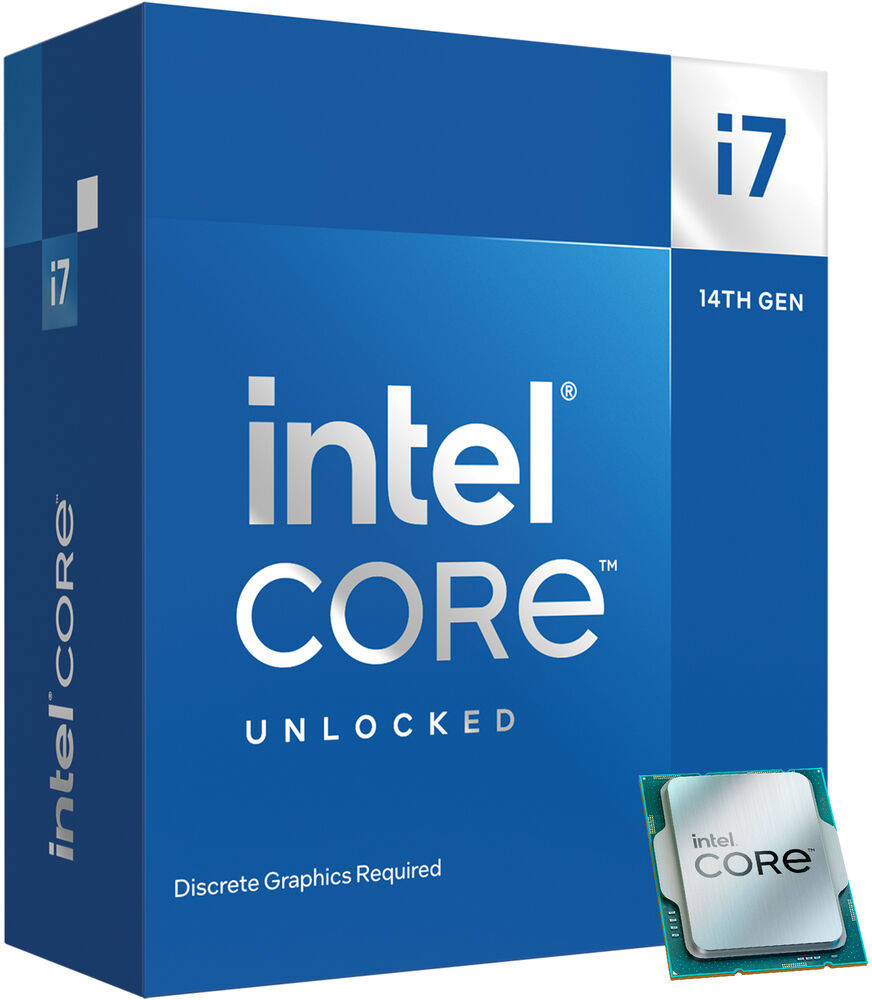

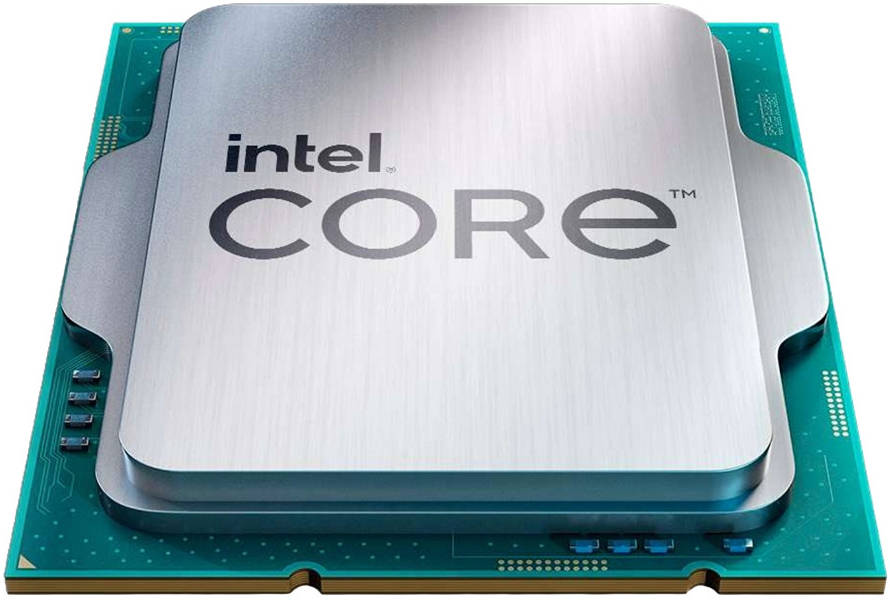

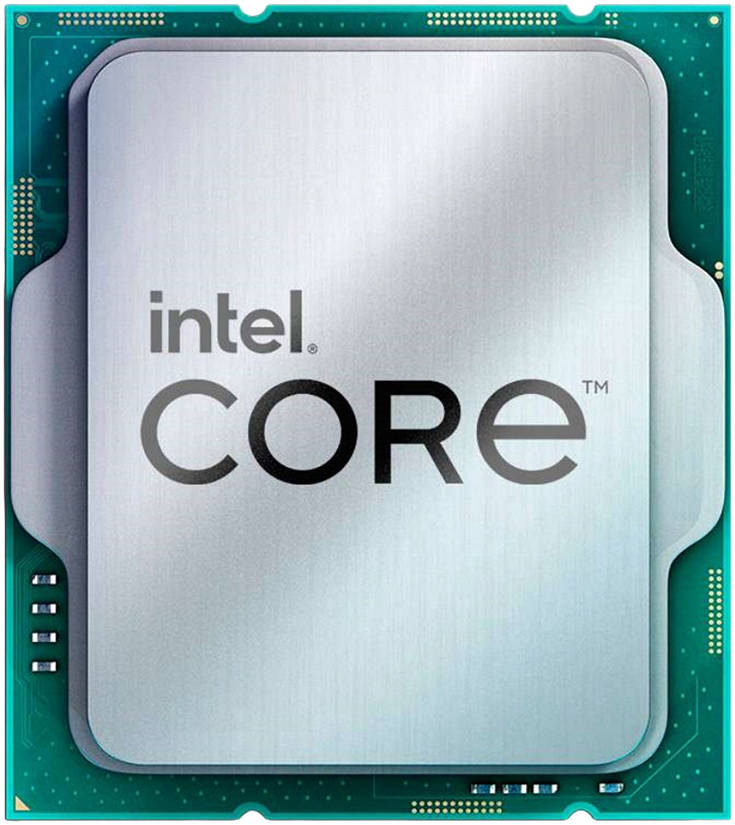

Intel Core i7-14700KF 3.4 GHz 20-Core LGA 1700 14th Gen Processor, 20 Cores & 28 Threads


Price:
Sale priceAED 1,699.00

Description

Intel Core i7-14700KF 3.4 GHz 20-Core LGA 1700 Processor

Key Features

  • 20 Cores & 28 Threads
  • 3.4 GHz P-Core Clock Speed
  • 5.6 GHz Maximum Turbo Boost Frequency
  • LGA 1700 Socket
  • 30MB Cache Memory
  • Dual-Channel DDR5-5600 Memory
  • Hybrid Core Architecture
  • Unlocked for Overclocking
  • 14th Generation (Raptor Lake-S Refresh)



Power up your productivity, gaming, and content creation with the Intel Core i7-14700KF 3.4 GHz 20-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i7-14700KF powers demanding applications and games with eight 3.4 GHz Performance-cores while the 12 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 30MB of cache and a 5.6 GHz Turbo Boost Max 3.0 frequency, this processor is made to handle intense workloads. You can overclock this processor for even greater performance. The Core i7-14700KF also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 memory at 5600 MHz.

The Core i7-14700KF does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. Please note that a thermal solution is NOT included.



Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.

Intel Thread Director
The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 28 threads are assigned to the right core at the right time.

PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.

Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.

Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.



Specifications



Product Collection Intel® Core™ i7 Processors (14th gen)
Code Name Products formerly RAPTOR LAKE
Vertical Segment Desktop
Processor Number i7-14700KF
Lithography Intel 7
Use Conditions PC/Client/Tablet
CPU Specifications
Total Cores 20
# of Performance-cores 8
# of Efficient-cores 12
Total Threads 28
Max Turbo Frequency 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.6 GHz
Performance-core Max Turbo Frequency 5.5 GHz
Efficient-core Max Turbo Frequency 4.3 GHz
Performance-core Base Frequency 3.4 GHz
Efficient-core Base Frequency 2.5 GHz
Cache 33 MB Intel® Smart Cache
Total L2 Cache 28 MB
Processor Base Power 125 W
Maximum Turbo Power 253 W
Supplemental Information
Marketing Status Launched
Launch Date Q4'23
Embedded Options Available No
Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision 4.0
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes 20
Package Specifications

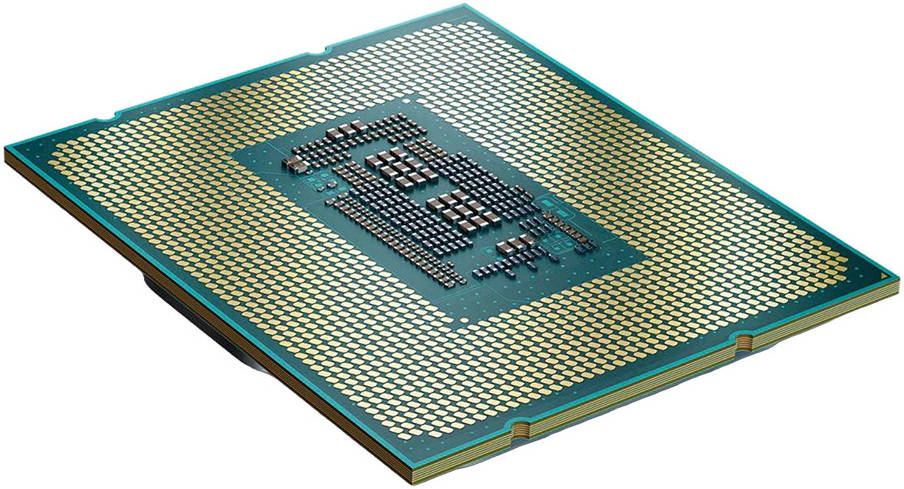

Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020A
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm
Advanced Technologies
Intel® Gaussian & Neural Accelerator 3.0
Intel® Thread Director Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes
Intel® Speed Shift Technology Yes
Intel® Turbo Boost Max Technology 3.0 ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® Hyper-Threading Technology ‡ Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Volume Management Device (VMD) Yes
Security & Reliability
Intel® Standard Manageability (ISM) ‡ Yes
Intel® Control-Flow Enforcement Technology Yes
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes
Mode-based Execute Control (MBEC) Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes





Specifications for Intel Core i7-14700KF 3.4 GHz 20-Core LGA 1700 14th Gen Processor, 20 Cores & 28 Threads, 30MB Cache Memory, 5.6GHz MaxTurbo Boost, Dual-Channel DDR5-5600 / 192GB Max Memory | BX8071514700KFSRN3Y

General
Brand
Model
  • i7-14700KF Box
Best Sellers Rank
Date first available
  • 18 October, 2023
Shipping Weight
  • 0.15 Kg
Shipping Dimensions
  • 4.50 cm x 10.00 cm x 11.51 cm
Series
  • Intel Core i7
Core Family
  • Intel
CPU Socket Type
  • Socket 1700
Number of Cores
  • 20-Cores
Number of Threads
  • 28
L2 Cache
  • 28 MB
L3 Cache
  • 33 MB
Integrated Graphics
  • -
Cooling Device
  • Cooling device not included - processor only
Max Number of PCI Express Lanes
  • 20
TDP
  • 253 W
Manufacturing Technology
  • 10 nm
Virtualization Technology Support
  • Yes
Hyper Threading Support
  • Yes
Maximum Supported Memory
  • 192GB
ECC Memory Supported
  • No
