| Type |
Dual Chamber Mid-Tower ATX Case |
| Exterior Dimensions |
470 x 320 x 470 mm |
| Volume (L) |
70.7 L |
| Motherboard Sizes |
ITX, mATX, ATX, EATX |
| Expansion Slots |
7 half + 4 full height |
| Riser Cable Included |
Yes, PCIE 4.0 x 16 |
| I/O |
1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack |
| Dust Filters |
Top, Side, Bottom |
| Top Fans |
3x 120 mm / 2x 140 mm |
| Top Radiator |
120-360 mm, 140-280 mm @ 68 mm thick |
| Rear Fans |
1x 120 mm / 140 mm |
| Rear Radiator |
1x 120 mm / 140 mm |
| Side Fans |
3x 120 mm / 2x 140 mm |
| Side Radiator |
120-360 mm, 140-280 mm @ 125 mm thick |
| Bottom Fans |
3x 120 mm / 2x 140 mm @ 32 mm thick |
| Max Video Card Length |
422 mm |
| Max Video Card Thickness |
105 mm |
| Max CPU Cooler Height |
180 mm |
| Max PSU Length |
235 mm |
| Storage |
2x 3.5" HDD or 4x 2.5" SSD |

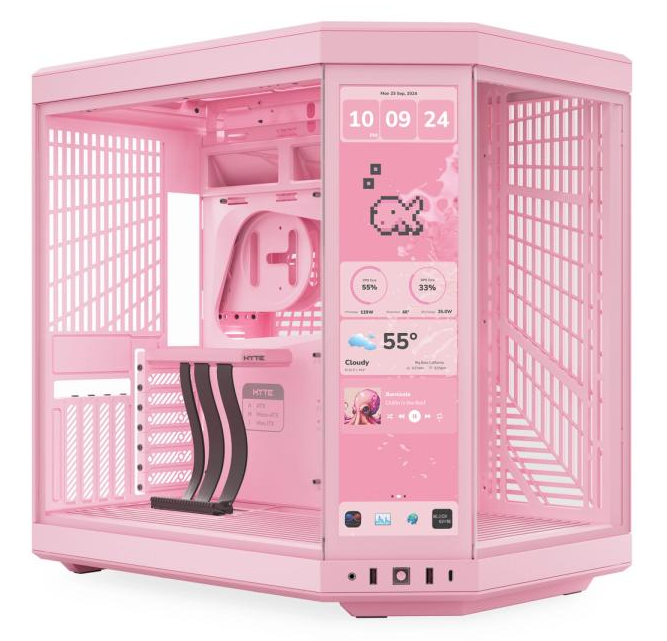

| Y70 Touch Infinite Display Specifications |
14.5" 688 x 2560 (2.5K), 60Hz, 5-Point Multi-Touch Capacitive Touchscreen, 183 PPI, 350 nits, 1500:1 Contrast Ratio, 89° Viewing Angle, 20ms Pixel Response Time |
| Y70 Touch Display Specifications |
14.1" 1100 x 3840 (4K), 60Hz, 10-Point Multi-Touch Capacitive Touchscreen, 283 PPI, 300 nits, 1200:1 Contrast Ratio, 85° Viewing Angle, 30ms Pixel Response Time |
