Description
Specifications

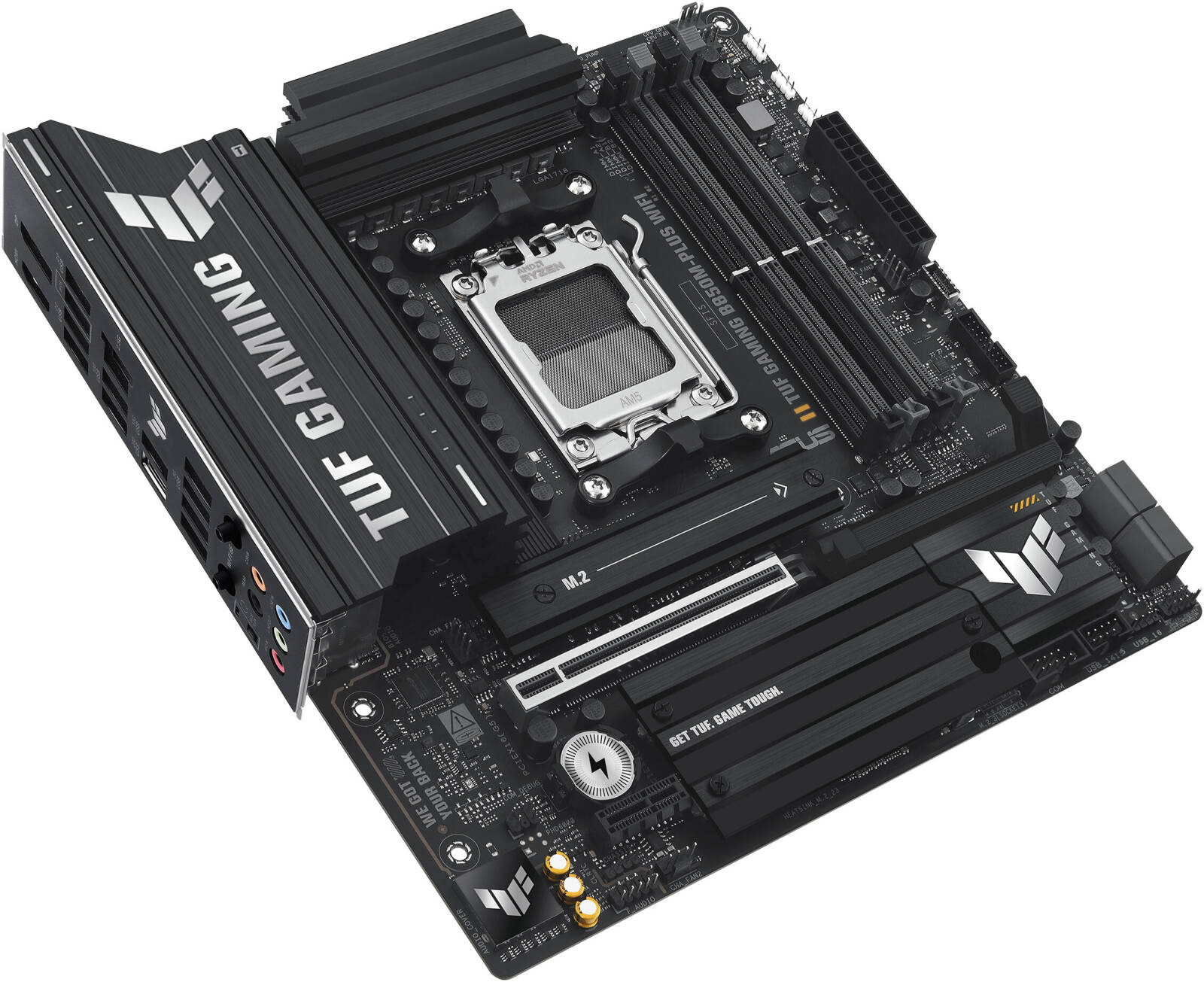

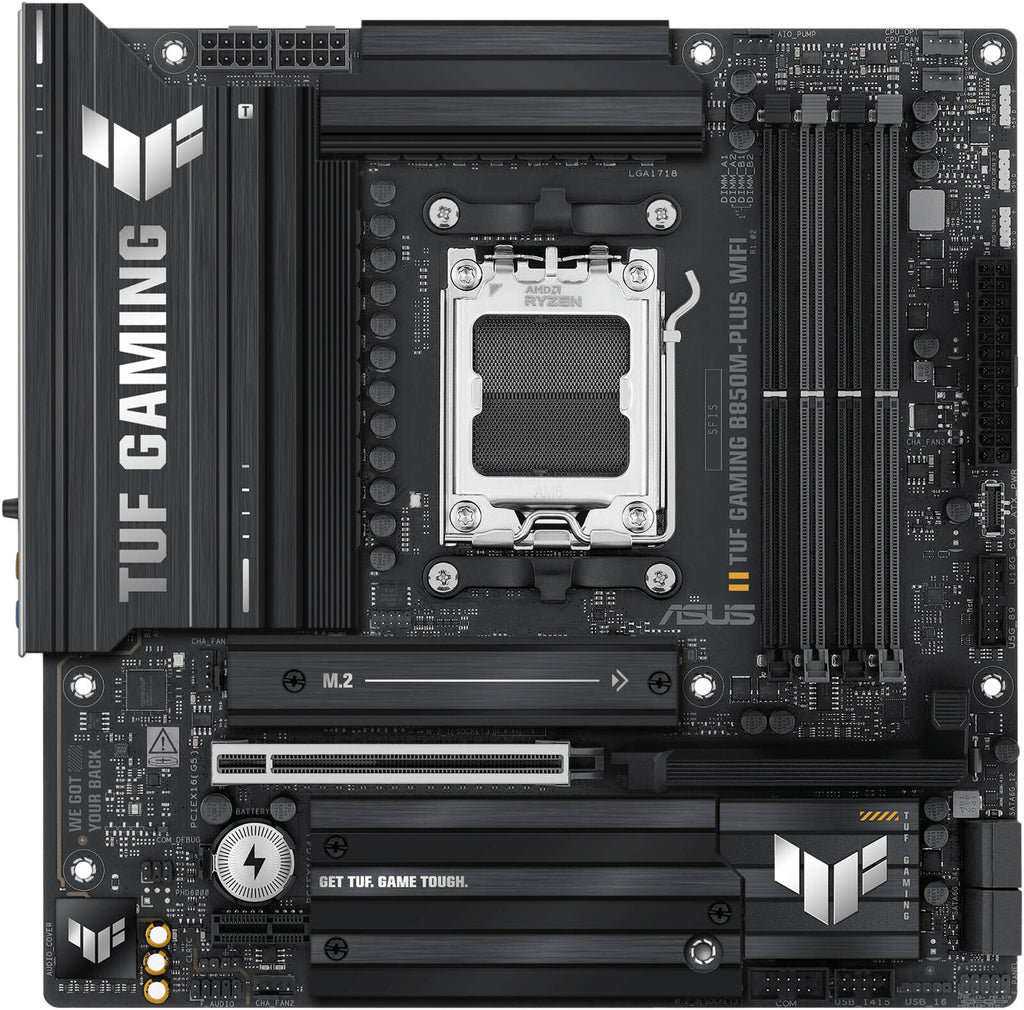

Model | TUF GAMING B850M-PLUS WIFI |
CPU | AMD Socket AM5 for AMD Ryzen™ 9000/8000/7000 Series Desktop Processors. |
Chipset | AMD B850 Chipset |
Memory | 4 x DIMM slots, max. 192GB DDR5, up to 8000+MT/s (OC), supports ECC and Non-ECC, dual channel, EXPO™, and AEMP. |
Graphics | 1 x DisplayPort (8K@30Hz), 1 x HDMI™ port (4K@60Hz). Graphics specs vary by CPU. |
Expansion Slots | 1 x PCIe 5.0 x16 slot (Ryzen™ 9000/7000), 1 x PCIe 4.0 x16 slot (Ryzen™ 8000), 1 x PCIe 4.0 x1 slot (B850 chipset). |
Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports. Supports RAID 0/1/5/10 (varies by CPU). |
Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |

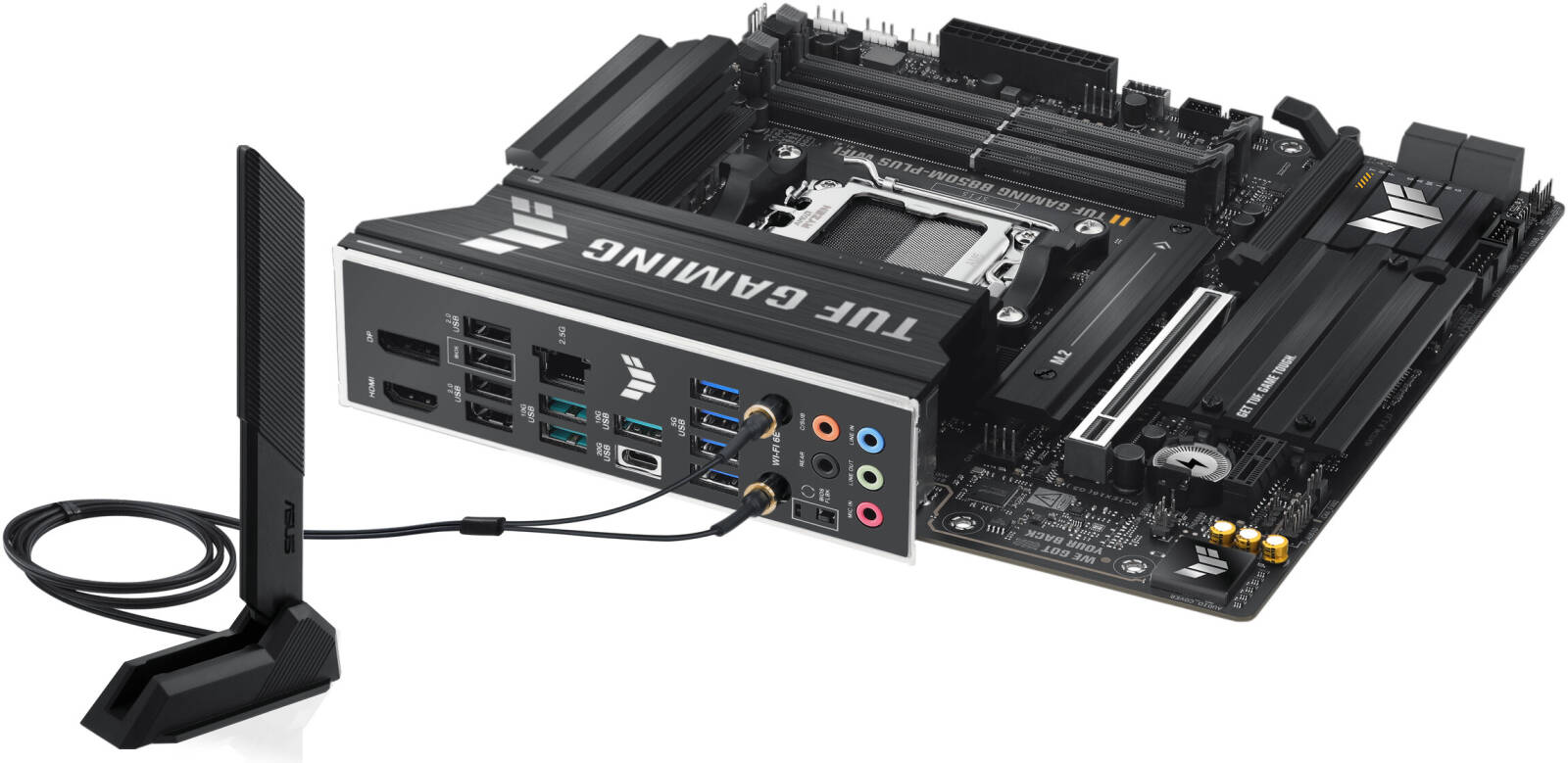

Wireless & Bluetooth | Wi-Fi 6E (802.11ax, 2x2), Bluetooth® v5.3. WiFi 6E supported only on Windows 11 or later. |
USB | Rear: 1 x USB 20Gbps (Type-C®), 3 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A). Front: 1 x USB 10Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports). |
Audio | Realtek ALC1220P 7.1 Surround Sound, 120 dB SNR stereo playback, 113 dB SNR recording, 32-Bit/192 kHz playback, premium audio components. |

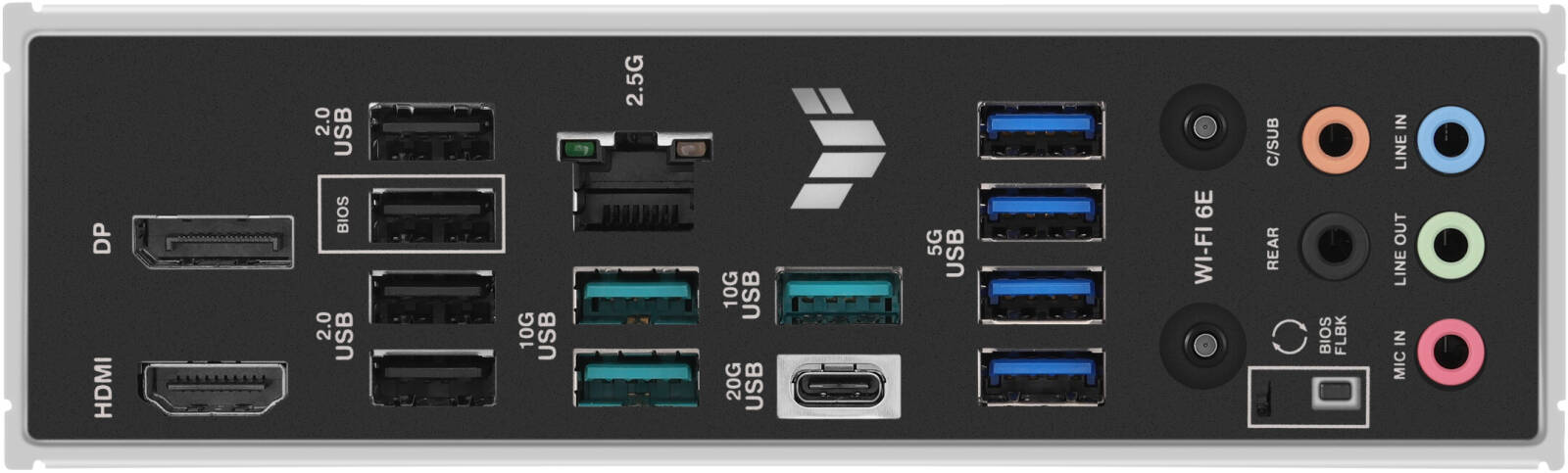

Back Panel I/O Ports | USB ports (as above), 1 x DisplayPort, 1 x HDMI™, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button. |
Internal I/O Connectors | Fan headers, power connectors, USB headers, 3 x M.2 slots, 4 x SATA ports, addressable RGB headers, Clear CMOS header, chassis intrusion header, COM Port header, front panel headers. |
Special Features | TUF Protection, ASUS Q-Design (e.g., M.2 Q-Latch, PCIe Q-Release), Aura Sync RGB, M.2 and VRM heatsinks, BIOS FlashBack™, pre-mounted I/O shield. |
Software Features | Armoury Crate (Aura Creator, Fan Xpert 4), TurboV Core, DTS Audio Processing, Norton 360 (60-day trial), WinRAR (40-day trial), UEFI BIOS EZ Mode. |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

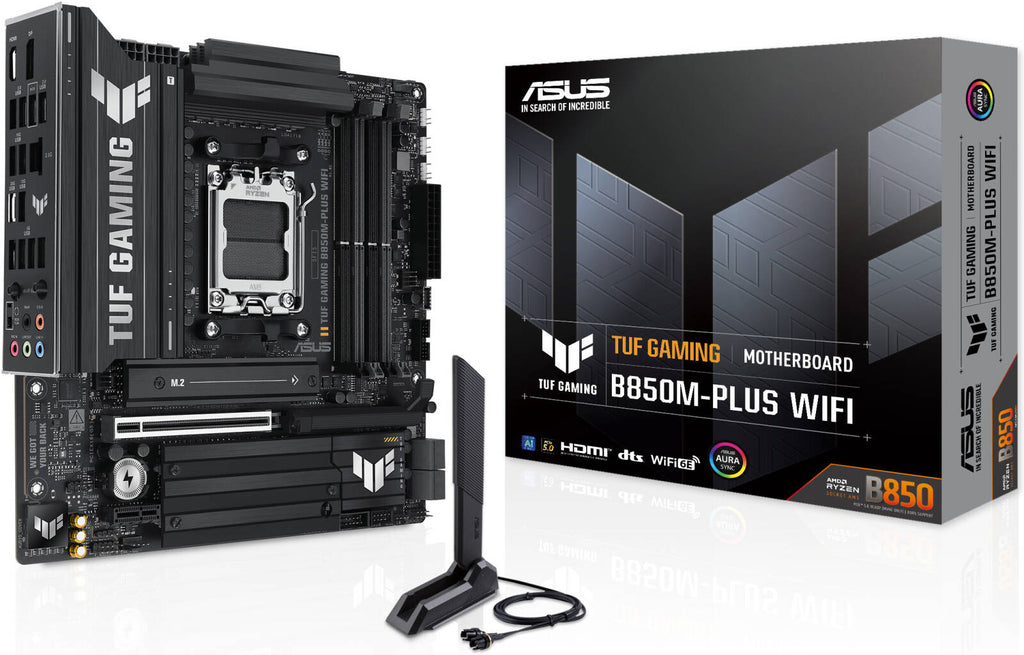

Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, TUF GAMING sticker, M.2 rubber packages, M.2 screw package, Quick start guide. |
Operating System | Windows 11, Windows 10 64-bit |
Form Factor | micro-ATX, 9.6" x 9.6" (24.4 cm x 24.4 cm) |
