Description
Description for ASUS B760M-A-CSM Micro ATX LGA 1700 Motherboard, Intel B760 Chipset, 4x DIMM DDR5 Slots, 128GB Max Memory, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot, Realtek 2.5Gb Ethernet | 90MB1EK0-M0EAYC

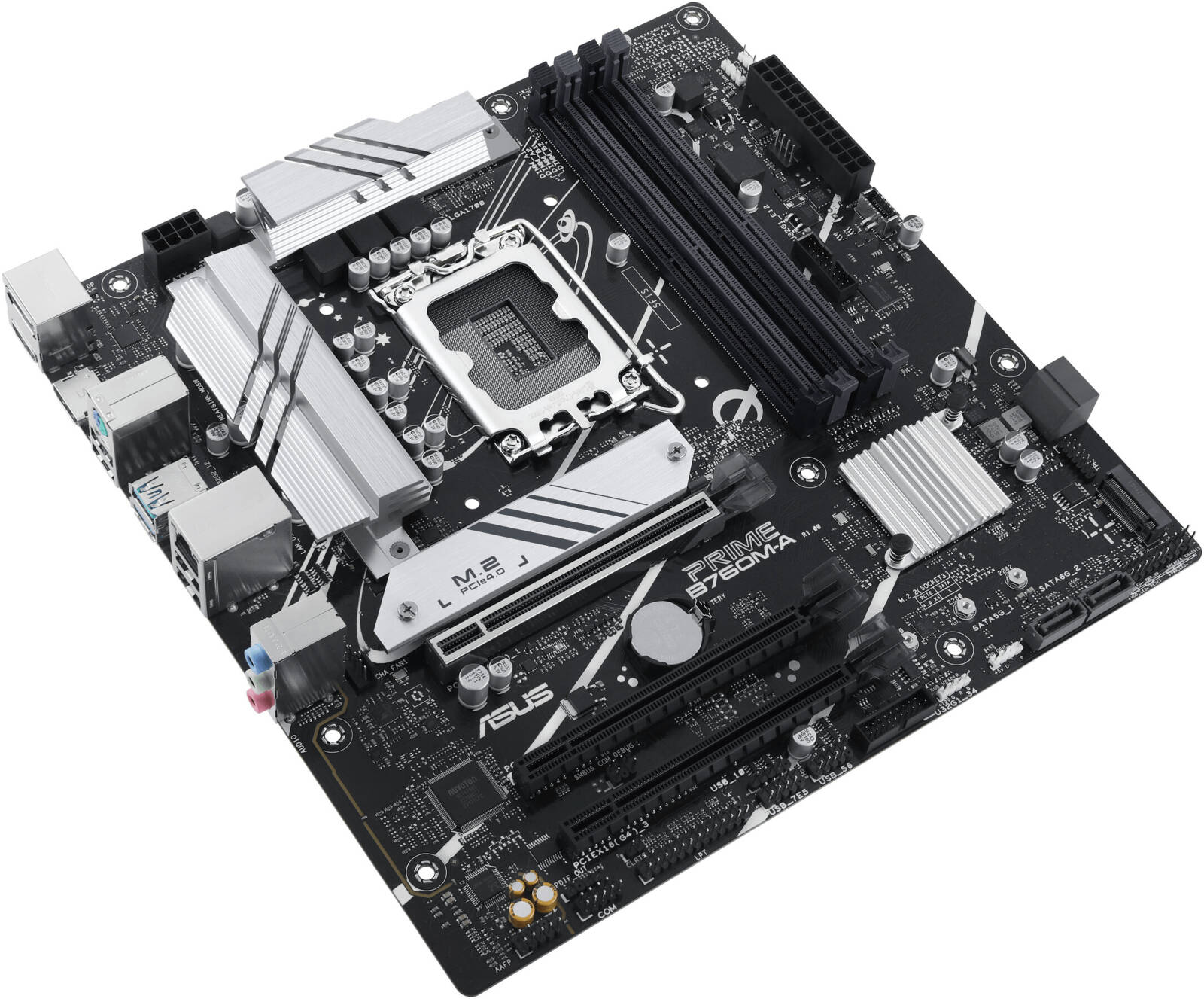

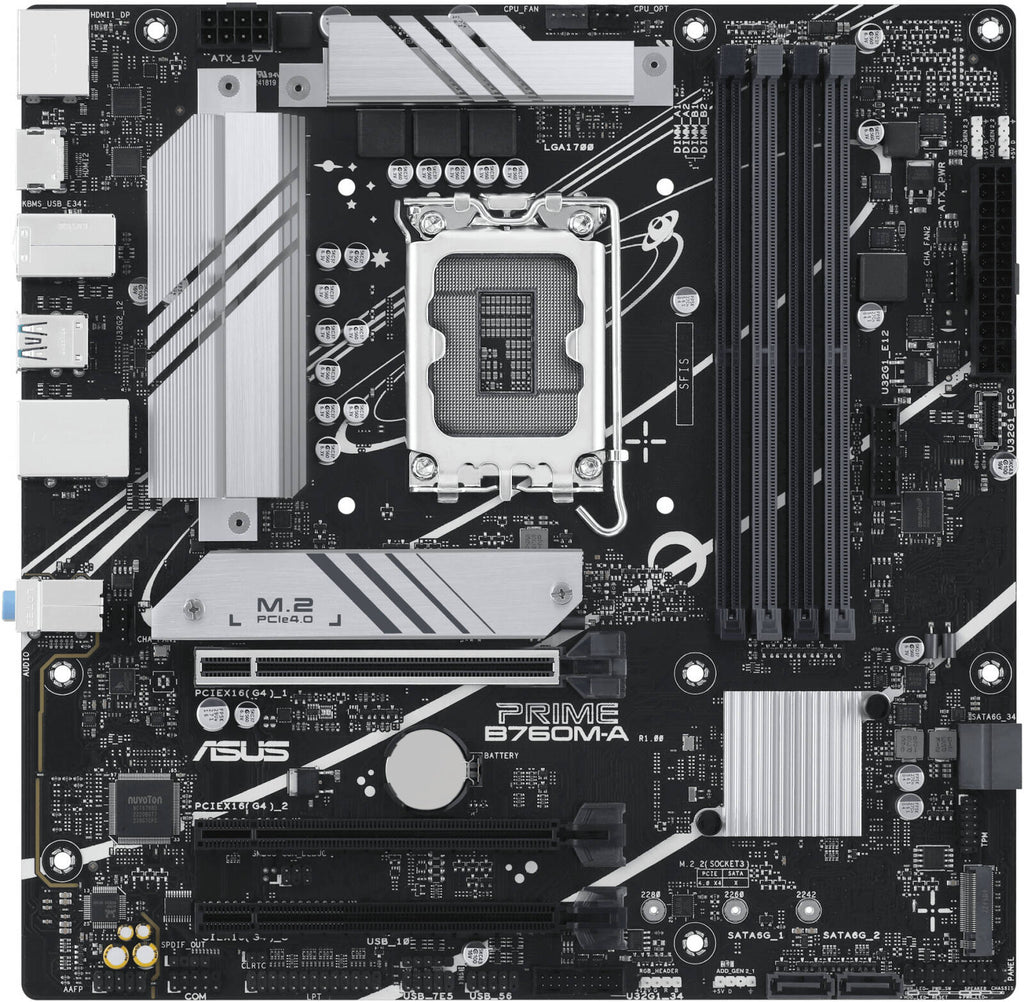

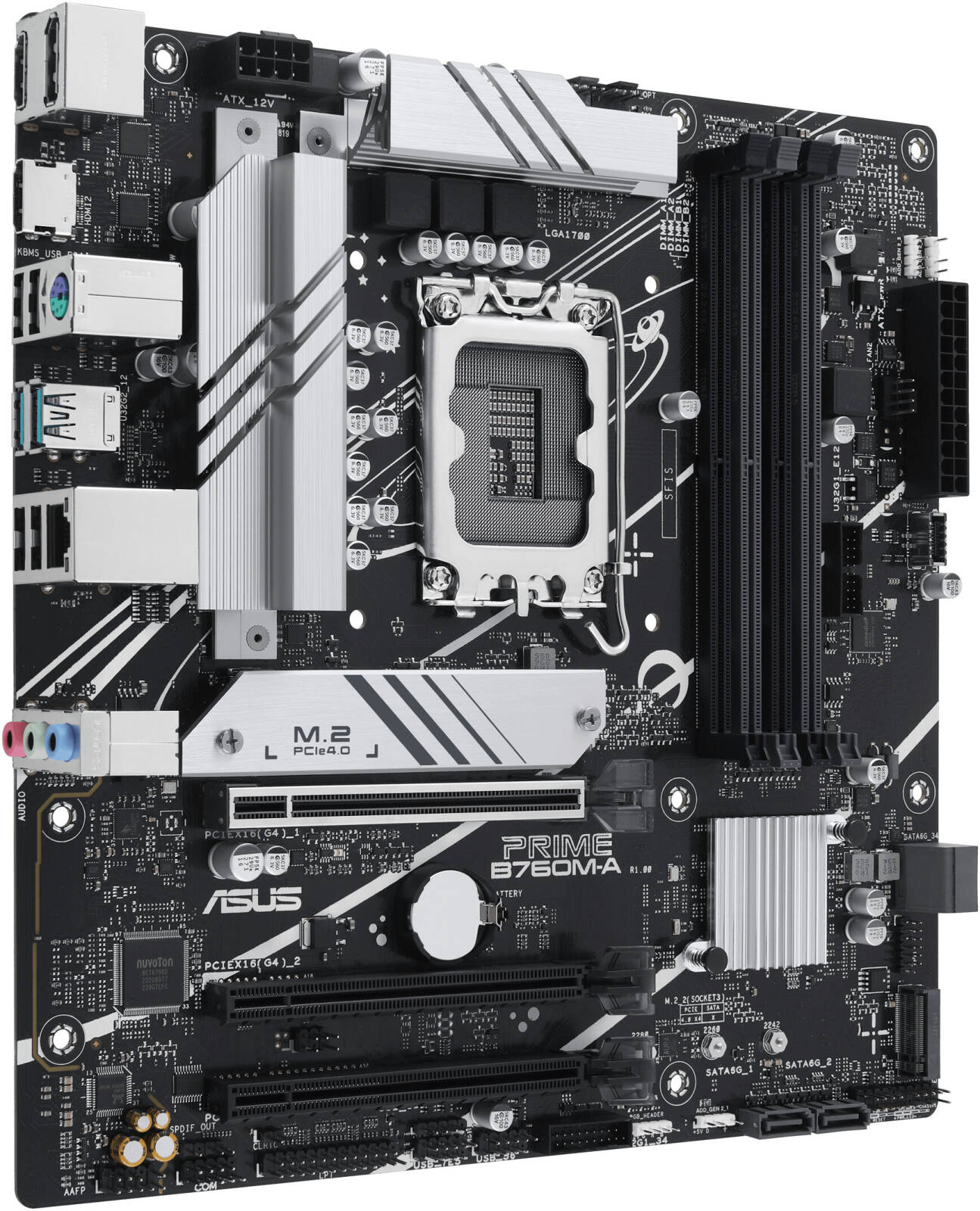

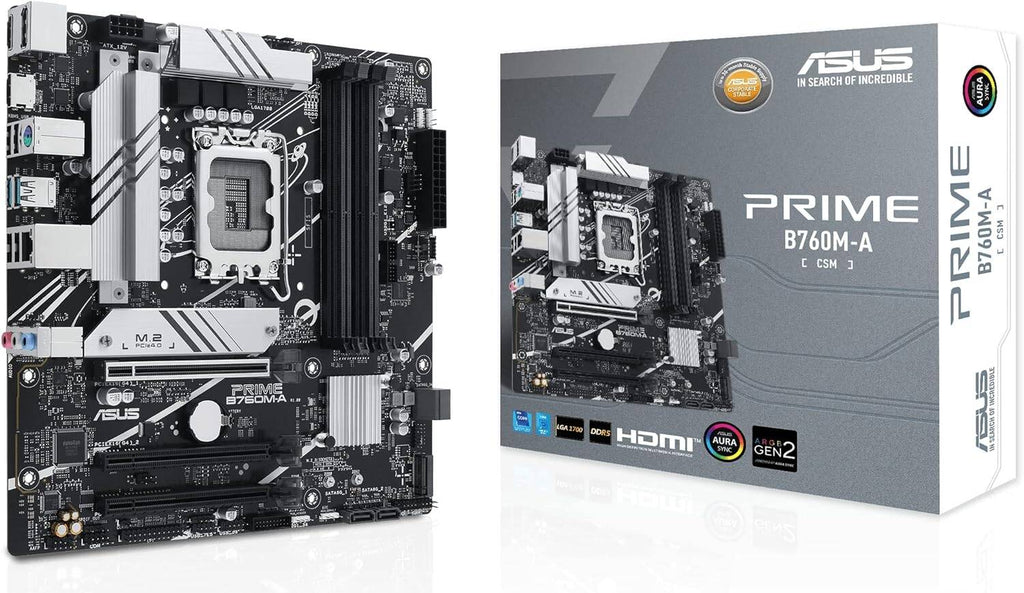

B760M-A-CSM
Intel® B760 (LGA 1700) mATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Specifications
| Model | PRIME B760M-A-CSM |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x DisplayPort** 2 x HDMI™ ports*** |
| Expansion Slots | 1 x PCIe 4.0 x16 slot 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage | 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB (Rear) | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| USB (Front) | 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |

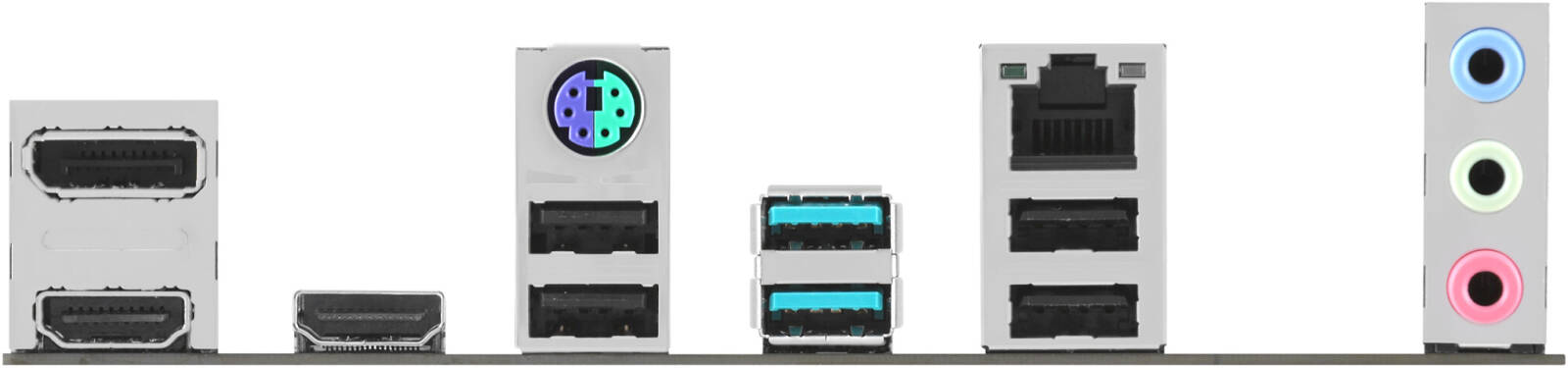

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI™ ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Special Features | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software Features | ASUS Exclusive Software, Armoury Crate, AI Suite 3, ASUS CPU-Z, Norton Deluxe (60 Days Free Trial), WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x ACC Express Activation Key Card, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Specifications for ASUS B760M-A-CSM Micro ATX LGA 1700 Motherboard, Intel B760 Chipset, 4x DIMM DDR5 Slots, 128GB Max Memory, 2x M.2 Slots, 1x PCIe 4.0 x16 Slot, Realtek 2.5Gb Ethernet | 90MB1EK0-M0EAYC
General
Brand
Model
- B760M-A-CSM
Date first available
- 01 June, 2024
Shipping Weight
- 1.40 Kg
Shipping Dimensions
- 7.00 cm x 18.00 cm x 27.50 cm
Chipset
- Intel B760
Form Factor
- Micro ATX
M.2 Slots
- 2
Maximum Memory
- 128 GB
Memory Slots
- 4
Memory Speed
- --
Memory Type
- DDR5
Multi-GPU Support
- --
PCI Express x16
- 1
Socket
- LGA 1700
