Lian Li O11 Dynamic EVO XL Full Tower Computer Case, Aluminum + Steel + Glass Materials, Up to 420mm Radiator Support & 11x Fans, 3.5mm Jack, USB-A 3.2x4, USB-C 3.2 I/O Ports, Black | O11DEXL-X
Description

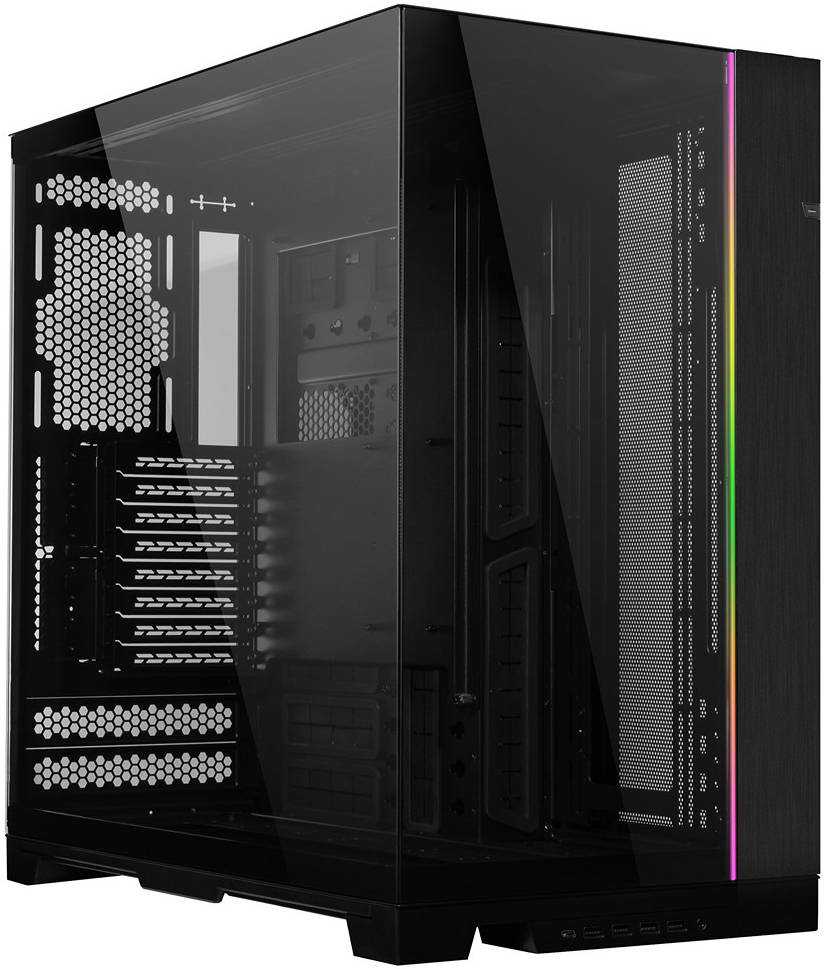

The Lian Li O11D Evo XL case has an unusual design, although it is made from the most common components for this type of device - plastic, steel, aluminum and glass. The case is complemented by multi-color ARGB lighting, which can be controlled using a button on the case. The power supply inside can be positioned at the discretion of the system assembler. The motherboard tray has a convertible design. The Lian Li O11D Evo XL case is made of the best materials, so it will not disappoint the owner with its durability.
Specifications
Common parameters
Type
Full Towert Case
Model
Lian Li O11D Evo XL
Form factor and dimensions
Case size
Full-Tower
Motherboard orientation
vertically
Length
522 mm
Width
304 mm
Height
531.9 mm
Appearance
Main color
Black
Housing material
aluminum,steel,glass
Presence of a window on the side wall
configurable
Window material
strained glass
Front panel material
strained glass
Backlight type
ARGB
Backlight color
multicolor
Backlight source
frame
Backlight control method
button on the body
Compatibility
Form factor of compatible boards
E-ATX, Micro-ATX, Mini-DTX, Standard-ATX
Form factor of compatible power supplies
ATX
Power supply placement
adjustable
Maximum power supply length
220 mm
Horizontal expansion slots
8
Maximum length of installed video card
460 mm
Maximum CPU cooler height
167 mm
Number of 2.5" drive bays
7 pcs
Number of internal bays 3.5"
4 things
Number of external bays 3.5"
No
Number of bays 5.25"
No
Cooling
Fans included
No
Front fan support
No
Rear fan support
2 x 120 mm
Top fan support
3 x 140 or 3 x 120 mm
Bottom fan support
3 x 140 or 3 x 120 mm
Side fan support
2 x 140 or 3 x 120 mm
Possibility of installing a liquid cooling system
There is
Upper mounting size of the LSS radiator
240 mm, 280 mm, 360 mm, 420 mm
Lower mounting size of the LSS radiator
240 mm, 280 mm, 360 mm, 420 mm
Lateral mounting size of LSS radiator
240 mm, 280 mm, 360 mm, 420 mm
Front Panel Connectors and Interfaces
I/O panel location
front
Connectors
3.5 mm jack (mic/audio), USB 3.2 Gen1 Type-A x4, USB 3.2 Gen1 Type-C
Built-in card reader
No
