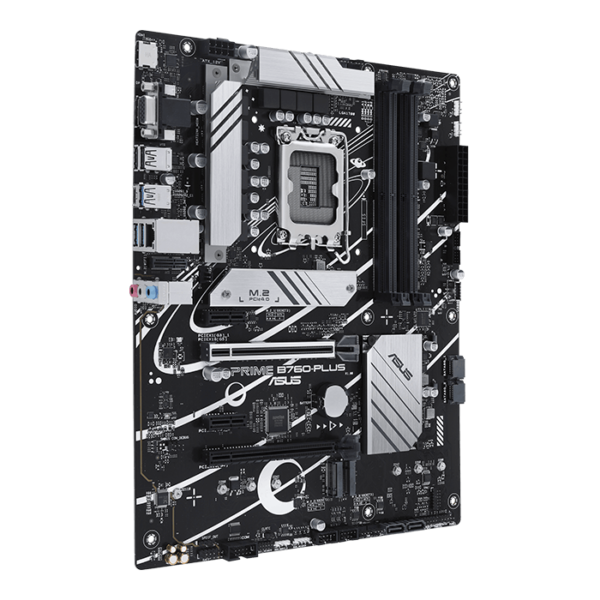

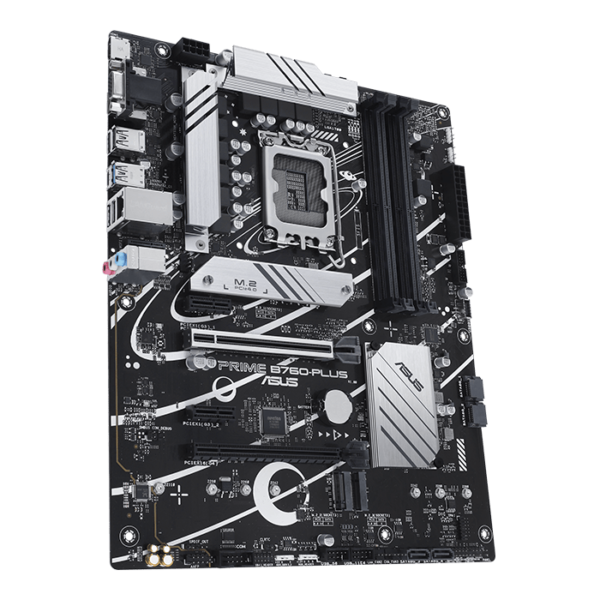

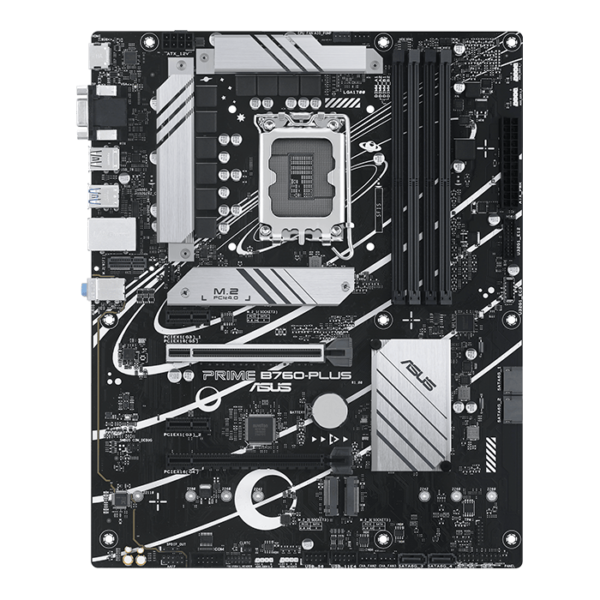

ASUS Prime B760-PLUS, an Intel^® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 1 Type-C^®, Thunderbolt™ (USB4^®) support, Aura Sync

• Intel^® LGA 1700 Socket: Ready for 13^th and 12^th Gen Intel^® processors
• Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C^®, front USB 3.2 Gen 1 Type-C^® and Thunderbolt™ (USB4^®) header support
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

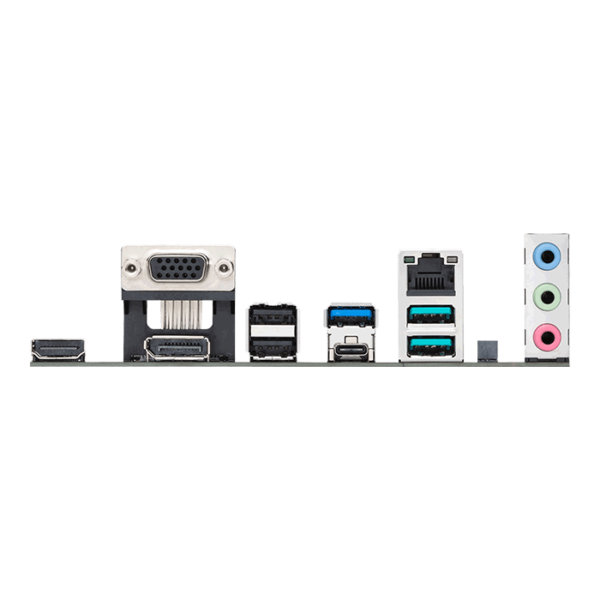

• HDMI™ port

• DisplayPort

• VGA port

• 2 x USB 2.0 ports (Type-A)

• 1 x USB 3.2 Gen 2x2 Type-C^®

• 1 x USB 3.2 Gen 1 port (Type-A)

• 2 x USB 3.2 Gen 2 ports (Type-A)

• Realtek 2.5Gb Ethernet

• Vertical M.2 slot (Key E)

• 3 x Audio jacks

• Expansion Slots
  • 1 x PCIe 5.0 x16 SafeSlot Core+
  • 1 x PCIe 4.0 x16 (max @x4)
  • 2 x PCIe 3.0 x1

• 1 x Thunderbolt™ (USB4^®) header

• 8 pin ProCool connector

• 3 x Addressable Gen 2 headers

• DDR5 support
  • Dual Channel
  • AEMP II & OptiMem II

• Intel^® Socket LGA1700 for 13^th and 12^th Gen Intel^® processors

• 1 x USB 3.2 Gen 1 header

• 1 x USB 3.2 Gen 1 Type-C^® connector

• 3 x M.2 slots
  • 1 x M.2 2280 (PCIe 4.0 x4 mode)
  • 1 x M.2 2280 (PCIe 4.0 x2 mode)
  • 1 x M.2 22110 (PCIe 4.0 x4 mode)

• Intel^® B760 Chipset

• 4 x SATA 6Gb/s

• 2 x USB 2.0 headers

• 1 x Aura RGB header
