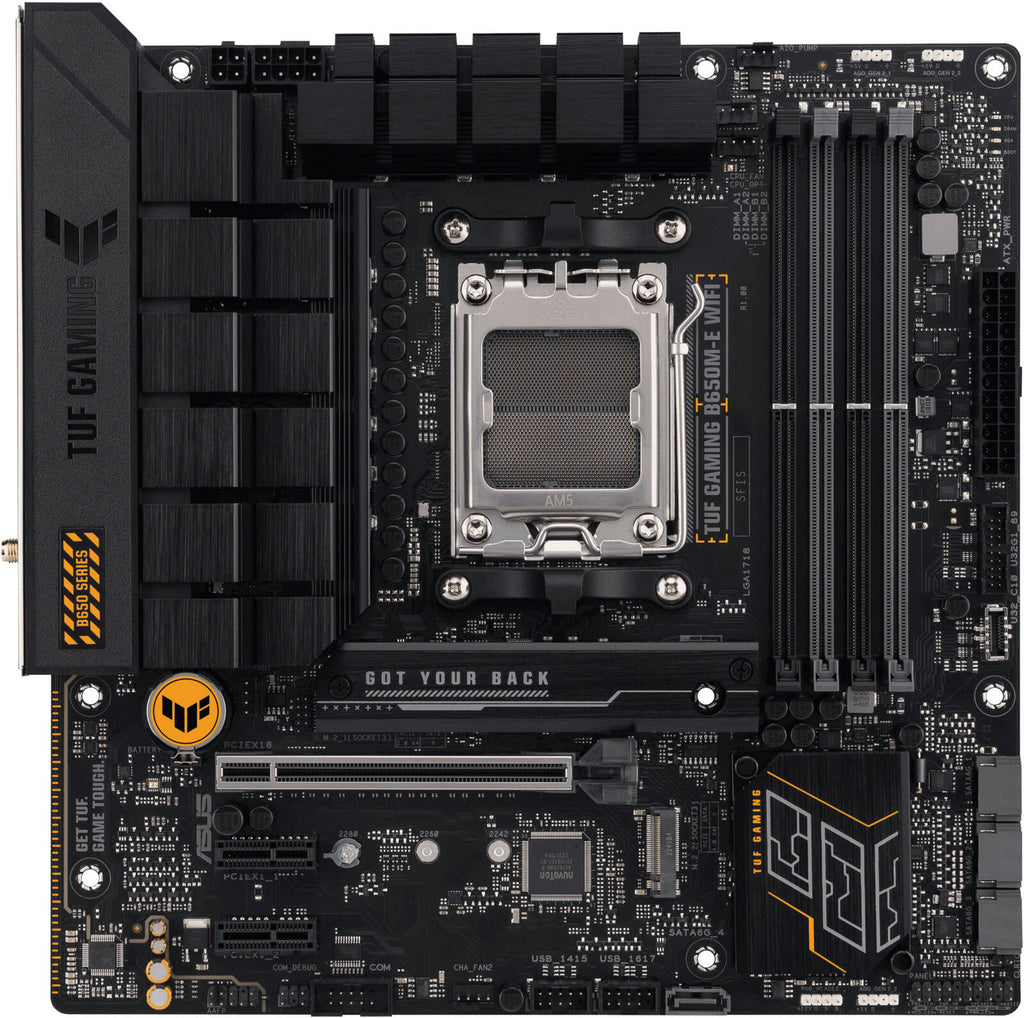

ASUS TUF B650M-E WIFI AM5 Gaming Motherboard, AMD B650 Chipset, 4x DIMM DDR5 Slots, 192GB Max Memory, 2x M.2 Slots, 2x DP, 1x HDMI, 3x Audio Jacks, 1x Realtek 2.5Gb Port | 90MB1FV0-M0EAY0
ASUS TUF B650M-E WIFI AM5 Gaming Motherboard, AMD B650 Chipset, 4x DIMM DDR5 Slots, 192GB Max Memory, 2x M.2 Slots, 2x DP, 1x HDMI, 3x Audio Jacks, 1x Realtek 2.5Gb Port | 90MB1FV0-M0EAY0
Specifications
| CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), OptiMem II |
| Graphics | 2 x DisplayPort (max. 8K@60Hz), 1 x HDMI port (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (AMD Ryzen™ 7000 Series), 2 x PCIe 4.0 x1 slots (AMD B650 Chipset) |
| Storage | 2 x M.2 slots, 4 x SATA 6Gb/s ports (supports PCIe RAID 0/1/10 and SATA RAID 0/1/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, Bluetooth® v5.2 |
| USB (Rear) | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A) |
| USB (Front) | 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192 kHz playback |

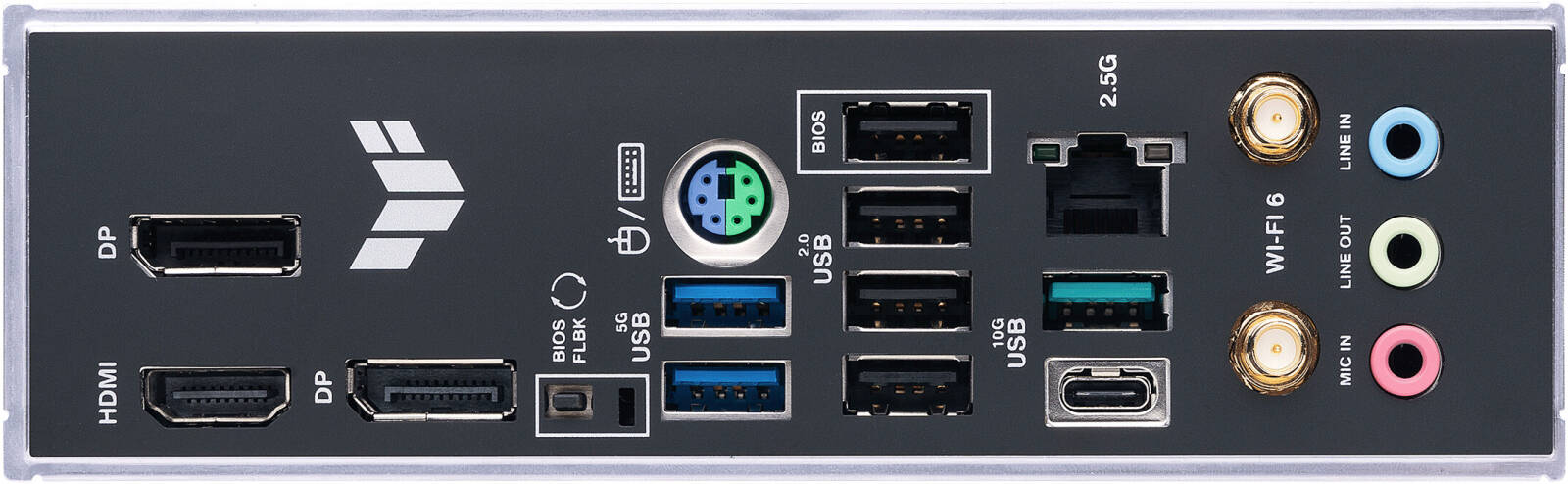

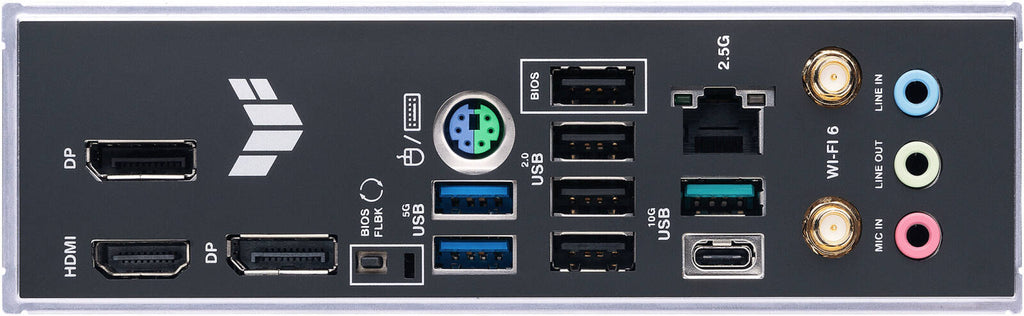

| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®), 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 2 x DisplayPort, 1 x HDMI port, 1 x Wi-Fi Module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors |
1 x 4-pin CPU Fan header, |
| Special Features | ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software Features | ASUS Exclusive Software (Armoury Crate, AI Suite 3, DTS Audio Processing, MyASUS, Norton 360 for Gamers (60 Days Free Trial), WinRAR), UEFI BIOS |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x TUF Gaming sticker, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x TUF Certification card, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor, 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
