Description

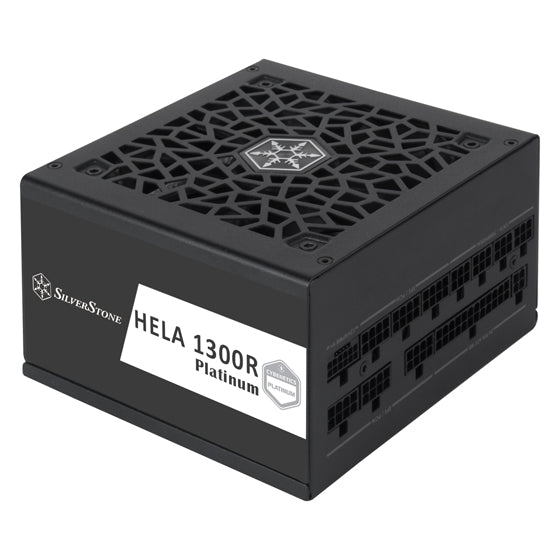

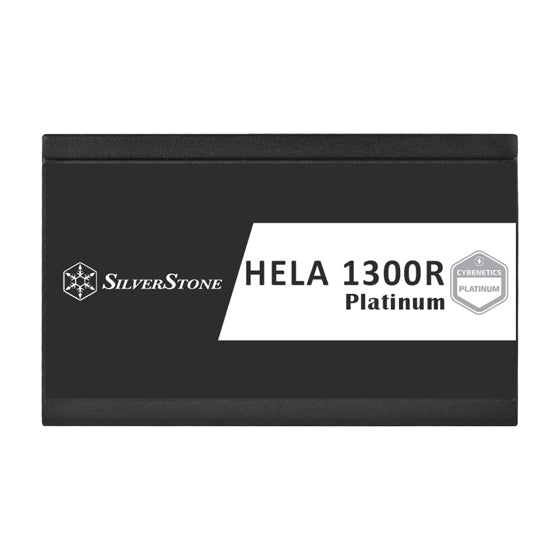

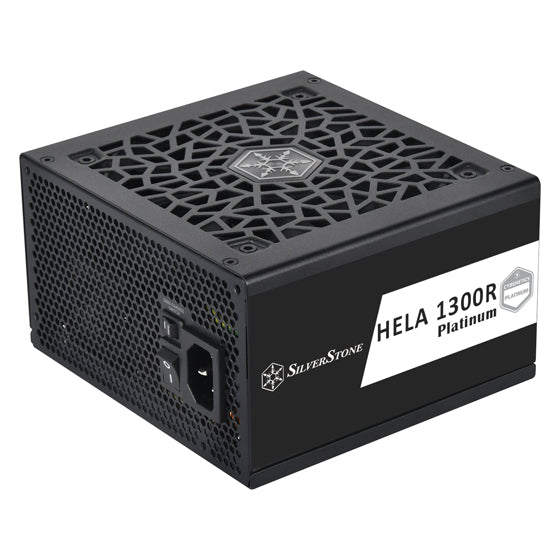

HELA 1300R Platinum
Cybenetics Platinum 1300W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply
- Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- Super flexible black flat cables
- 100% modular cables
- 24/7 continuous power output with 50℃ operating temperature
- All Japanese electrolytic capacitors

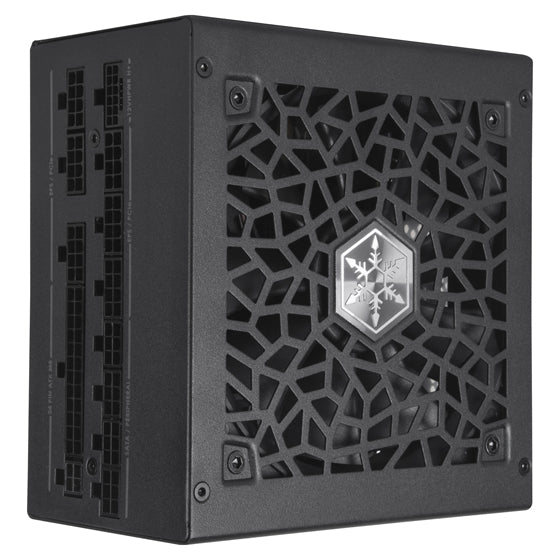

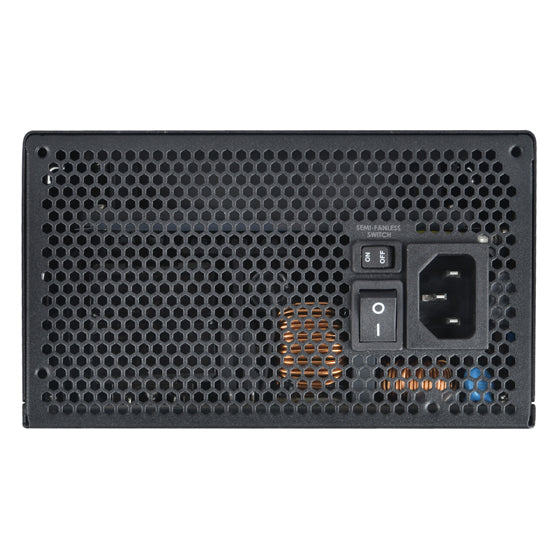

- Silent running 120mm FDB fan with semi-fanless and delayed shut-off function
- 180° angled SATA connectors designed for stack mounted hard drives
Product Specifications
Product No.

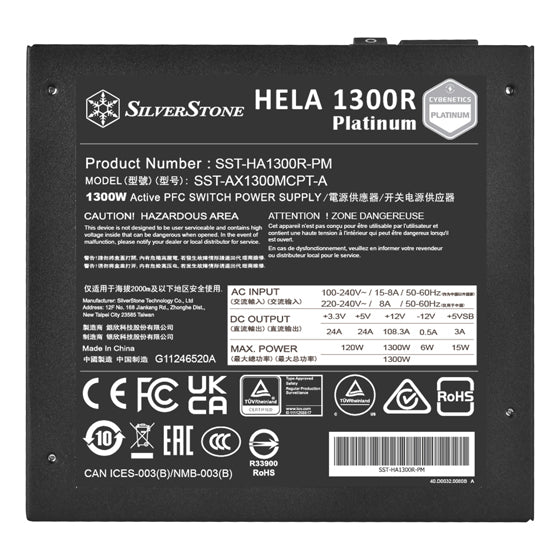

SST-HA1300R-PM
Model (safety certification)
SST-AX1300MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1300W
Power density
720W per liter
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 24A | 24A | 108.3A | 3.0A | 0.5A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | +5/-7% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 40mV | 40mV | 80mV | 40mV | 80mV |
Combined +3.3V & +5V
120W
Combined +12V
1300W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥89% & <91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
No load operation
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
No load operation

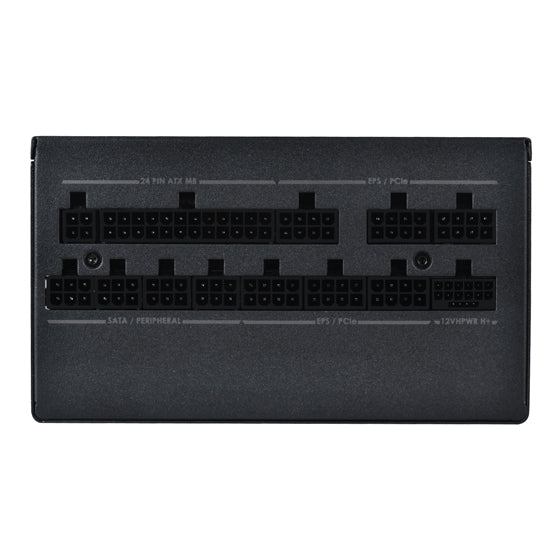

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
1 x 12+4-Pin 12VHPWR connector
8 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors
2 x 4-Pin + 4-Pin ATX 12V connector
1 x 12+4-Pin 12VHPWR connector
8 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors
Cooling System
Silent 120mm FDB fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
2.93 kg
Other
● This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
