| Motherboard Series |
Intel chipset,CVN series |
| Chipset |
Intel Z590 |
| Processor |
Supports 10th Gen and 11th Gen Intel® Core™ Processors (Socket 1200) |
| Memory |
4 DIMM slots，support dual channel DDR4-3200/2933 MHz;(memory overclocking also depends on the matching CPU and the overclocking performance of the memory itself!) |
| Graphics Support |
1*PCI Express4.0/3.0X16 slot |
| SATA Ports |
6*SATA3.0 6Gb/s ports |

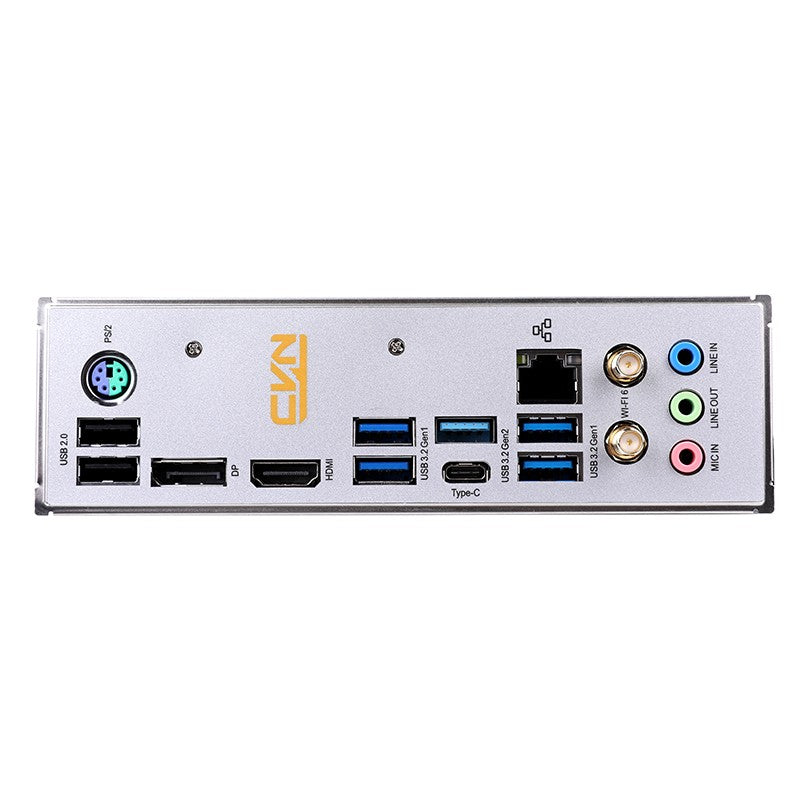

| Board I/O |
1*PS2 port;1*HDMI port,1*DP port; 2*USB 2.0 ports,2*USB 3.2 Gen2(Type-A +Type-C),4*USB 3.2 Gen1 ports; 3*audio ports; （onboard： 1*USB2.0 header,1*USB3.2 Gen1 header） |
| Expansion Slots |
1*PCI Express3.0X4 slot,1*PCI Express3.0X1 slot,2*M.2 slot; |
| BIOS |
128M UEFI |
| Hardware Monitor |
CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN |
RTL8111H 1000M LAN+1*Wi-Fi 6 Wireless LAN |
| Audio |
6-Channel High Definition audio CODEC |
| Configuration |
245 x 245 mm mATX |
