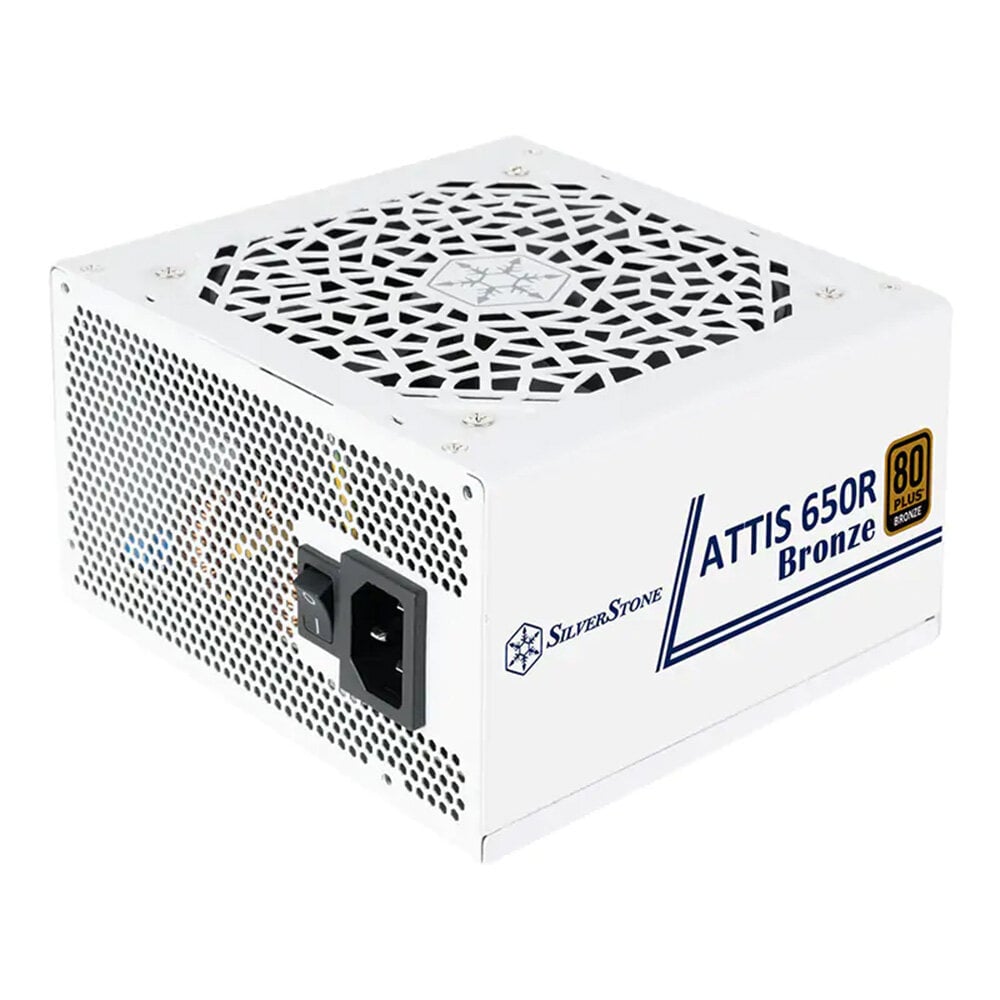

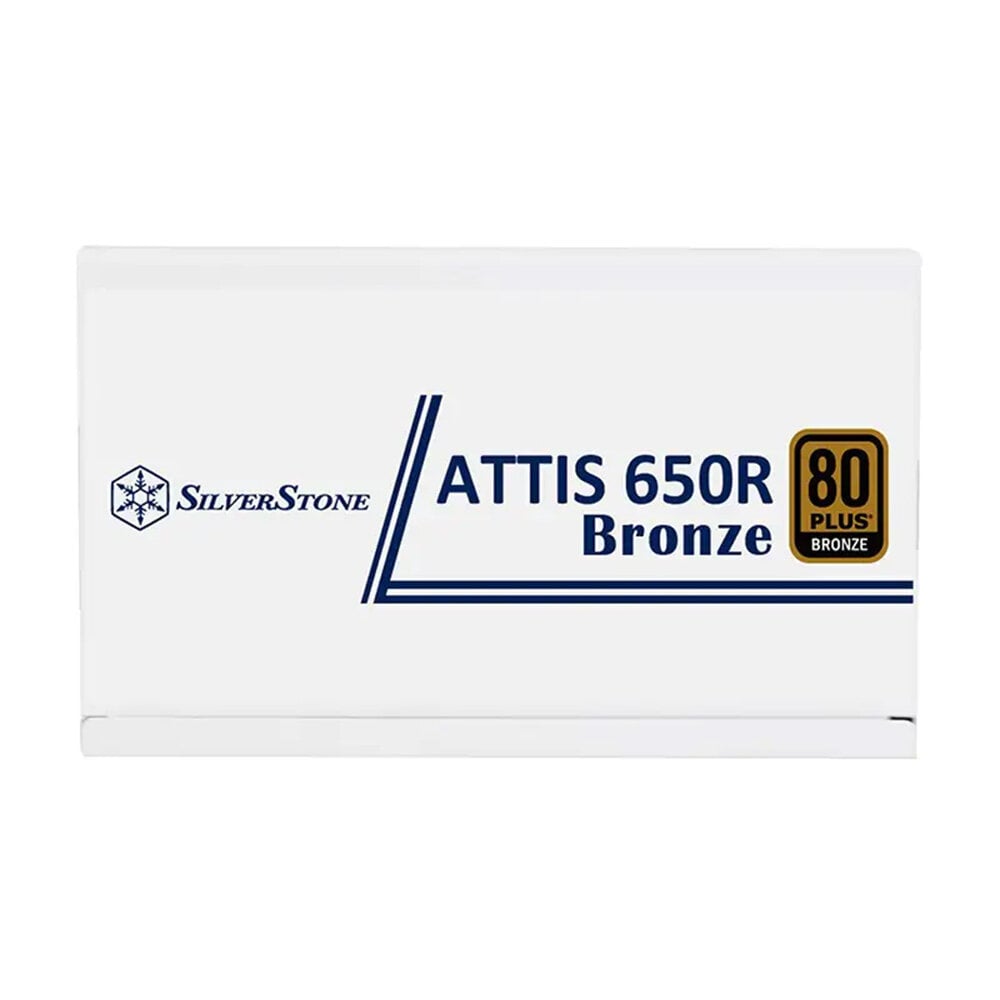

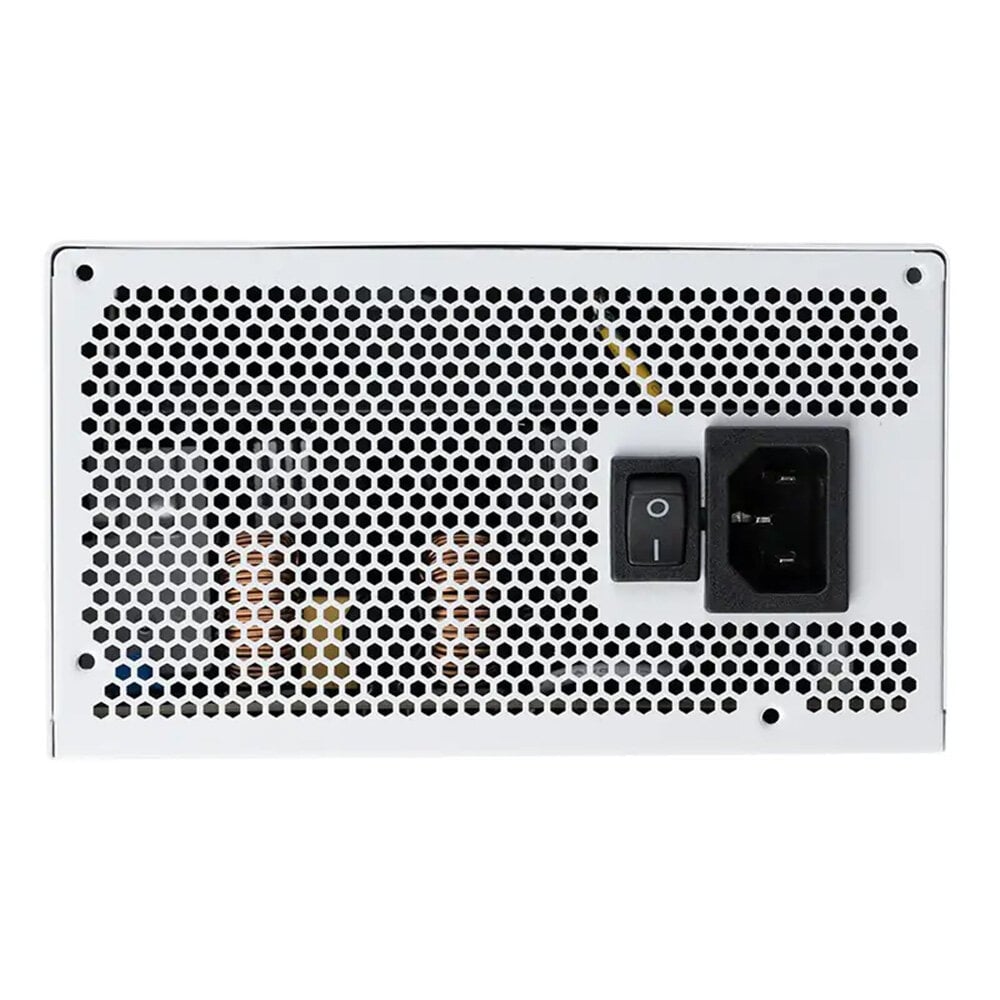

SilverStone ATTIS 650R Non-Modular Power Supply, 650W Power, 80 Plus Bronze, Silent 120mm Fan, Active PFC, Multi-Protection, ATX Form Factor, Japanese Primary Capacitor, White

Roll over image to zoom in Click on image to zoom

SilverStone ATTIS 650R Non-Modular Power Supply, 650W Power, 80 Plus Bronze, Silent 120mm Fan, Active PFC, Multi-Protection, ATX Form Factor, Japanese Primary Capacitor, White

Name: SilverStone ATTIS 650R Non-Modular Power Supply, 650W Power, 80 Plus Bronze, Silent 120mm Fan, Active PFC, Multi-Protection, ATX Form Factor, Japanese Primary Capacitor, White
Brand: SilverStone
Price: 239.00 AED
Availability: InStock

SilverStone

Specifications

Size

USB

Port

Features

Size

USB

Port

Features

Size

USB

Port

Features

Configure Your System

CPU

Motherboard

RAM

GPU

Internal storage 1

Price:

AED 239.00

Quantity:

Share this product

Description

Specifications

Color	SST-AT650R-BF: Black (lead-free paint)
Max. DC Output	650W
Load Range
Output	+3.3V +5V +12V +5VSB -12V
Max. (Amps)	20A 20A 54.1A 3A 0.3A
Range (%)	±5% ±5% +5~-7% ±5% ±10%
Line Reg. (%)	±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p)	50mV 50mV 120mV 50mV 50mV
Combined +3.3V & +5V	100W
Combined +12V	649.2W
Input Voltage	90 ~ 264 Vrms
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC (PF>0.9 at full load)
Efficiency	82% ~ 85% (at 20% ~ 100% loading)
MTBF	100,000 hours
Operating temperature	0°C ~ 50°C
Protection	Over Power Protection
	Over Voltage Protection
	Short Circuit Protection
	Under Voltage Protection
Connectors	1 x 24 / 20-Pin motherboard connector
	2 x 4-Pin + 4-Pin ATX 12V connectors
	4 x 8 / 6-Pin PCIe connectors
	6 x SATA connectors
	3 x 4-Pin Peripheral connector

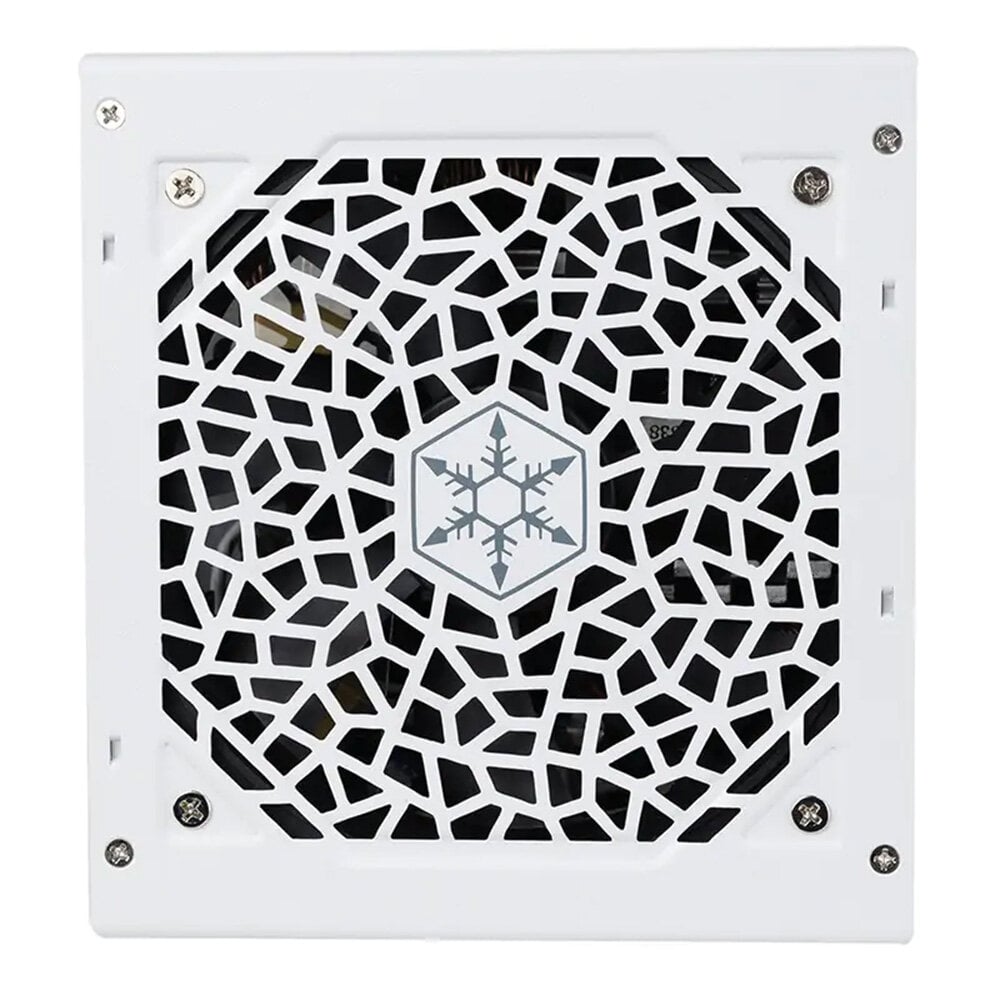

Cooling System	Silent 120mm fan
Noise Level	18 dBA minimum
Certification	80 PLUS Bronze
Form factor	ATX (PS2)
Dimension	150mm (W) × 86mm (H) × 140mm (D)
Dimension	5.91" (W) x 3.39" (H) x 5.5" (D)
Weight	1.52 kg
